Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V ie ABS E5 2020-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

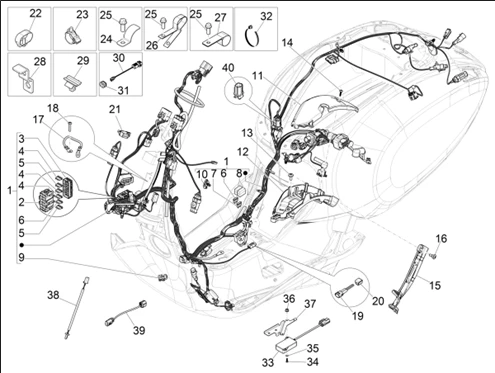

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1252/Primavera_125_4T_3V_ie_ABS_E5_2020-2023_EMEA_06.08.png)
1 |
1D003644 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
1 |
1D003481 - WIRING HARNESS More informationQuantity required : 1 |
||||||
|
1 |
1D003646-GROUP CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D003644 WIRING HARNESS More informationQuantity required : 1 |
||||||
|
2 |
1D000563-CAP More informationQuantity required : 1 |
||||||
|
3 |
1D000563-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
4 |
BLADE FUSE STANDARD 5A OEM PIAGGIO COMMON A LA RANGE-293256 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
5 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
6 |
BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.jpg)
7 |
BLADE FUSE STANDARD 20A OEM PIAGGIO COMMON A TOUTE LA RANGE-580561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.jpg)
8 |
COVER BOX A FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290404 More informationQuantity required : 2 |
||||||
|
9 |
1D001827 CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
10 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/4/8/img/91348.jpg)
11 |
COVER DE BATTERY OEM PIAGGIO 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673622 More informationQuantity required : 1 |
||||||
|
12 |
1B011269-BOÃ - TIER DOOR-CIRCUIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
13 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 2 |
||||||
|
13 |
667643-BANDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
14 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 1 |
||||||
|
15 |
1B008424 ELECTRIC SYSTEM GUARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
16 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 1 |
||||||
|
17 |
CM297307-GROUND WIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
18 |
SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597 More informationQuantity required : 1 |
||||||
|
19 |
1D000167-CONNECTEUR More informationQuantity required : 1 |
||||||
|
20 |
1D001098-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
21 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/9/img/72909.jpg)
22 |
CLAMP MOUNTING (23MM) OEM PIAGGIO COMMON A LA RANGE-CM006908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
23 |
CLAMP CLIPS OEM PIAGGIO COMMON A LA RANGE-CM006910 More informationQuantity required : 1 |
||||||
|
24 |
CLAMP SHEET METAL OEM PIAGGIO COMMON A LA RANGE-1D000071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
25 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 3 |
||||||
|
26 |
1D001828-BRACKET More informationQuantity required : 1 |
||||||
|
27 |
1D000081-BRACKET More informationQuantity required : 1 |
||||||
|
28 |
680036-PATTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
29 |
CLIPS CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-639560 More informationQuantity required : 1 |
||||||
|
30 |
PRISE USB OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > COMMON WITH AUTRES VEHICULES-1D003323 More informationQuantity required : 1 |
||||||
|
31 |
1B001591-GUIDE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
32 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 10 |
||||||
|
33 |
2D000305-CENTRE ELECTRONIC More informationQuantity required : 1 |
||||||
|
34 |
615795 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
35 |
WASHER PLATE (3. 8X9X0. 5) OEM PIAGGIO COMMON A LA RANGE-013836 More informationQuantity required : 1 |
||||||
|
36 |
B005195 NUT More informationQuantity required : 1 |
||||||
|
37 |
1B005401-BRACKET More informationQuantity required : 1 |
||||||
|
38 |
SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R More informationQuantity required : 1 |
||||||
|
39 |
1D002688-WIRING HARNESS DE RACCORDEMENT More informationQuantity required : 1 |
||||||
|
40 |
COVER CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-1D002384 More informationQuantity required : 1 |
