Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Up-Date 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

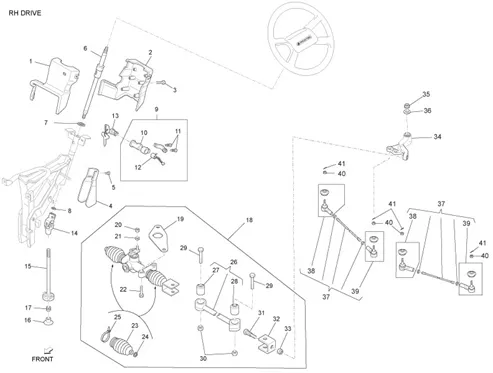

Guidon/direction : 03.08 ARTICULATION DE DIRECTION (RHD)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/994/Porter_Up-Date_2009-2010_03.08.png)
1 |
4528687Z01030 COVER More informationQuantity required : 1 |
||||||
|
2 |
4528787Z01030 COVER More informationQuantity required : 1 |
||||||
|
3 |
9354014020000 SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/2/img/113352.jpg)
4 |
COVER DE STEERING OEM PIAGGIO PORTER 1992 > 2010-4523387Z01000 More informationQuantity required : 1 |
||||||
|
5 |
9004157025000 SCREW More informationQuantity required : 1 |
||||||
|
6 |
D4520187Z01 - COLONNE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/5/img/110285.jpg)
7 |
WASHER NYLON STEERING OEM PIAGGIO PORTER 2020 <-D9004202038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/7/img/113417.jpg)
8 |
9616001500000 CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/2/7/img/122927.jpg)
9 |
BRACKET CONTACTEUR/NEIMAN OEM PIAGGIO PORTER 1993 > 2010-D4502087506 More informationQuantity required : 1 |
||||||
|
10 |
4530787503000 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/1/9/img/117319.jpg)
11 |
4589712020000 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/4/4/img/121344.jpg)
12 |
HARNESS DE IGNITION SWITCH OEM PIAGGIO PORTER 01/10/1993 > 2009-8445087527000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/0/0/9/img/119009.jpg)
13 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO PORTER -2634650001- More informationQuantity required : 1 |
||||||
|
14 |
658011 ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
15 |
D4522087Z01 - ARBRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/2/5/img/111925.jpg)
16 |
PROTECTOR POUSSIERE SHAFT INTERMEDIAIRE DE STEERING OEM PIAGGIO PORTER 1995 < 2009-4522287Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/6/2/img/113762.jpg)
17 |
BUSH DE STEERING (21. 5X1615X10) OEM PIAGGIO CARGO-9004387066000 More informationQuantity required : 1 |
||||||
|
18 |
4550287521000 - BOITE GUIDON More informationQuantity required : 1 |
||||||
|
19 |
4534287502000 COVER More informationQuantity required : 1 |
||||||
|
20 |
D9411040800 NUT More informationQuantity required : 2 |
||||||
|
21 |
D9451100800 - RONDELLE More informationQuantity required : 2 |
||||||
|
22 |
D9004105165 BOLT More informationQuantity required : 3 |
||||||
|
23 |
4553587507000 - CAPUCHON More informationQuantity required : 2 |
||||||
|
24 |
4553687502000 - COLLIER More informationQuantity required : 2 |
||||||
|
25 |
709518-CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/8/3/img/116183.jpg)
26 |
BIELLETTE DE STEERING ENTRE CREMAILLERE ET HOUSING (LIVREE WITHOUT SILENT-BLOC B004680-B004679) OEM PIAGGIO PORTER 2020 <-B004678 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/3/2/8/img/118328.jpg)
27 |
RUBBER MOUNT BIELETTE ARTICULATION STEERING OEM PIAGGIO PORTER 1992 > 2009-9004385142000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/9/8/img/118498.jpg)
28 |
RUBBER MOUNT BIELETTE ARTICULATION STEERING OEM PIAGGIO PORTER 1992 > 2009-9004385143000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/7/6/img/115676.jpg)
29 |
SCREW TH (14X155) OEM PIAGGIO COMMON A LA RANGE-9004101388000 More informationQuantity required : 2 |
||||||
|
30 |
D9004177013 - ECROU More informationQuantity required : 2 |
||||||
|
31 |
4544587505000 - BOULON More informationQuantity required : 1 |
||||||
|
32 |
4544387507000 CALIPER ART. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/8/7/img/113387.jpg)
33 |
NUT AUTOBLOQUANT/NYLSTOP (M12X125) OEM PIAGGIO COMMON A LA RANGE-261318 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/1/6/img/122216.jpg)
34 |
ARM DE CONTROL STEERING OEM PIAGGIO PORTER CONDUITE A RIGHT PAYS ANGLO-SAXON 1992 > 2009-652021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/6/8/img/112268.jpg)
35 |
NUT OEM PIAGGIO PORTER-9004178043000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/8/9/img/111389.jpg)
36 |
WASHER DE ARM DE STEERING OEM PIAGGIO PORTER 2020 <-9004201638000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/4/7/img/118647.jpg)
37 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
38 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 1 |
||||||
|
39 |
BIELLETE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/0/8/img/151208.jpg)
40 |
NUT BIELLETTE STEERING OEM PIAGGIO PORTER 2020 <-D9004171003 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/4/8/img/110448.jpg)
41 |
GOUPILLE OEM PIAGGIO PORTER 1998 > 2020-261336 More informationQuantity required : 4 |
