Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) PIAGGIO VU

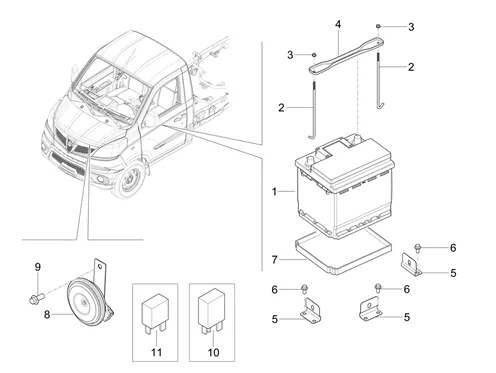

Circuit électrique : 11.04 RELAIS - BATTERIE - AVERTISSEUR SONORE
Relais - Batterie - Avertisseur sonore
Search
BATTERY OEM PIAGGIO PORTER NP6 2021 >-1D003155

1
P2R reference P2R reference 173837
Maker reference Maker reference 1D003155

BATTERY OEM PIAGGIO PORTER NP6 2021 >-1D003155

More information

Quantity required : 1

WC3361040001A0 - PULL ROD

2
P2R reference P2R reference 173838
Maker reference Maker reference WC3361040001A0

TIRANT MOUNTING BATTERY OEM PIAGGIO PORTER NP6 2021 >-WC3361040001A0

More information

Quantity required : 2

WQ32005F62 - ÉROU HEXAGONAL BRIDE

3
P2R reference P2R reference 173568
Maker reference Maker reference WQ32005F62

WQ32005F62 ÉROU HEXAGONAL FLANGE

More information

Quantity required : 2

WET361040500A0 - BATTERY CLAMPING PLATE

4
P2R reference P2R reference 173839
Maker reference Maker reference WET361040500A0

WET361040500A0 BATTERY CLAMPING PLATE

More information

Quantity required : 1

WET361040300A0 - BRACKET

5
P2R reference P2R reference 173840
Maker reference Maker reference WET361040300A0

WET361040300A0 BRACKET

More information

Quantity required : 3

WET361040000A0 - BATTERY TRAY

7
P2R reference P2R reference 173841
Maker reference Maker reference WET361040000A0

WET361040000A0 BATTERY TRAY

More information

Quantity required : 1

AVERTISSEUR OEM PIAGGIO PORTER NP6 2021 >-WET377010200A0

8
P2R reference P2R reference 173842
Maker reference Maker reference WET377010200A0

AVERTISSEUR OEM PIAGGIO PORTER NP6 2021 >-WET377010200A0

More information

Quantity required : 1

WQ1840820F61 - HEXAGON FLANGE BOLT

9
P2R reference P2R reference 173354
Maker reference Maker reference WQ1840820F61

WQ1840820F61 HEXAGON FLANGE BOLT

More information

Quantity required : 1

RELAIS 12V 30A OEM PIAGGIO PORTER NP6 2021 >-4O000014

10
P2R reference P2R reference 216127
Maker reference Maker reference 4O000014

RELAIS 12V 30A OEM PIAGGIO PORTER NP6 2021 >-4O000014

More information

Quantity required : 10

W1B14837500002 - MICRORELAY 12V 30A

10
P2R reference P2R reference 173843
Maker reference Maker reference W1B14837500002
Replaced by référence Replaced by référence 216127

W1B14837500002 - MICRORELAY 12V 30A

More information

Quantity required : 10

RELAIS 12V 40A OEM PIAGGIO PORTER NP6 2021 >-WC3375010002A0

11
P2R reference P2R reference 173844
Maker reference Maker reference WC3375010002A0

RELAIS 12V 40A OEM PIAGGIO PORTER NP6 2021 >-WC3375010002A0

More information

Quantity required : 3
