Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

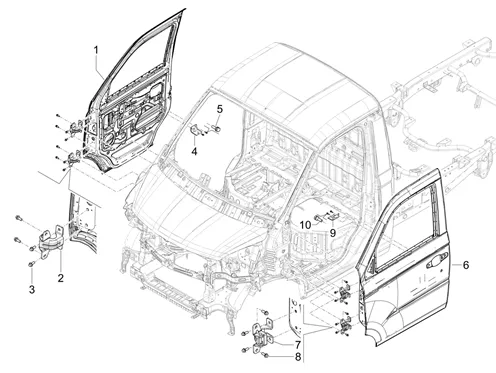

Châssis - carrosseries : 04.07 PORTES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/983/Porter_NP6_(SW_2650)_04.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/7/7/img/173377.jpg)
1 |
DOOR FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 >-WET610200601A07L More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/7/8/img/173378.jpg)
2 |
CHARNIERE PORTIERE COMPLETE OEM PIAGGIO PORTER NP6 2021 >-WC3610110001A07L More informationQuantity required : 2 |
||||||
3 |
WQ1800820 SCREW A HEAD HEXAGONALE BRIDEE More informationQuantity required : 8 |
||||||
|
4 |
WL0610100187A0 MOUNT BRKT ASSEMBLY DOOR INTERIOR HANDRAIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/7/0/img/173370.jpg)
5 |
SCREW TH (6X20) WITH WASHER ORIGNE PIAGGIO COMMON A LA RANGE-WQ146B0620F62 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/8/1/img/173381.jpg)
6 |
DOOR FRONT LEFT OEM PIAGGIO PORTER NP6 2021 >-WET610200501A07L More informationQuantity required : 1 |
||||||
|
7 |
CHARNIERE PORTIERE COMPLETE OEM PIAGGIO PORTER NP6 2021 >-WC3610110001A07L More informationQuantity required : 2 |
||||||
|
8 |
WQ1800820 SCREW A HEAD HEXAGONALE BRIDEE More informationQuantity required : 8 |
||||||
|
9 |
WL0610100187A0 MOUNT BRKT ASSEMBLY DOOR INTERIOR HANDRAIL More informationQuantity required : 1 |
||||||
|
10 |
SCREW TH (6X20) WITH WASHER ORIGNE PIAGGIO COMMON A LA RANGE-WQ146B0620F62 More informationQuantity required : 2 |
