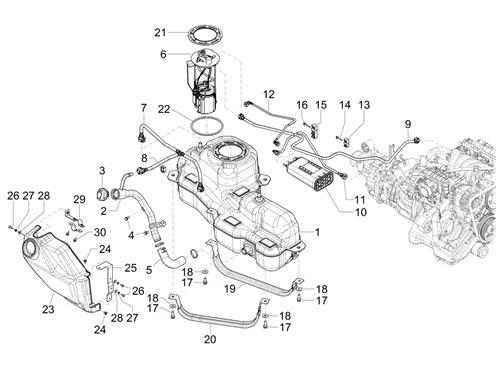

Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) PIAGGIO VU

Châssis - circuits : 06.01 SYSTÈME DE CHAUFFAGE
Système de chauffage
Search
WET110020100A0 - RESERVOIR ESSENCE

1
P2R reference P2R reference 173513
Maker reference Maker reference WET110020100A0

WET110020100A0 FUEL TANK

More information

Quantity required : 1

WET110050100A0 - GOULOTTE DE RESERVOIR DE CARBURANT

2
P2R reference P2R reference 173514
Maker reference Maker reference WET110050100A0

WET110050100A0 GOULOTTE DE TANK DE FUEL

More information

Quantity required : 1

CAP TANK (WET110030200A0) OEM STYLE PIAGGIO PORTER NP6 2021 >

3
P2R reference P2R reference 173435
Maker reference Maker reference WET110030200A0

CAP TANK (WET110030200A0) OEM STYLE PIAGGIO PORTER NP6 2021 >

More information

Quantity required : 1

SCREW A SIX PANS WITH DOUBLE WASHER M8X20 OEM PIAGGIO PORTER NP6-WQ146B0820F62

4
P2R reference P2R reference 173211
Maker reference Maker reference WQ146B0820F62

SCREW A SIX PANS WITH DOUBLE WASHER M8X20 OEM PIAGGIO PORTER NP6-WQ146B0820F62

More information

Quantity required : 2

WET110120200A0 - REFUELING PIPE

5
P2R reference P2R reference 173515
Maker reference Maker reference WET110120200A0

WET110120200A0 REFUELING MANIFOLD

More information

Quantity required : 1

PUMP A FUEL OEM PIAGGIO PORTER NP6 2021 >-WET110040100A0

6
P2R reference P2R reference 173516
Maker reference Maker reference WET110040100A0

PUMP A FUEL OEM PIAGGIO PORTER NP6 2021 >-WET110040100A0

More information

Quantity required : 1

WET110120100A0 - FUELING HOSE

7
P2R reference P2R reference 173517
Maker reference Maker reference WET110120100A0

WET110120100A0 FUELING HOSE

More information

Quantity required : 1

WET110140100A0 - CLAMP

8
P2R reference P2R reference 173518
Maker reference Maker reference WET110140100A0

WET110140100A0 CLAMP

More information

Quantity required : 1

WET110111300A0 - TUYAU DE CARBURANT

9
P2R reference P2R reference 173519
Maker reference Maker reference WET110111300A0

WET110111300A0 HOSE DE FUEL

More information

Quantity required : 1

FILTER CANISTER COMPLETE OEM PIAGGIO PORTER NP6 2021 >-WET110310100A0

10
P2R reference P2R reference 173520
Maker reference Maker reference WET110310100A0

FILTER CANISTER COMPLETE OEM PIAGGIO PORTER NP6 2021 >-WET110310100A0

More information

Quantity required : 1

WET110110500A0 - CARBON TANK AIR OULET AIR VENTING PIPE

11
P2R reference P2R reference 173521
Maker reference Maker reference WET110110500A0

WET110110500A0 CARBON TANK AIR OULET AIR VENTING MANIFOLD

More information

Quantity required : 1

WET110110400A0 - CARBON TANK AIR INLET AIR VENTING PIPE

12
P2R reference P2R reference 173522
Maker reference Maker reference WET110110400A0

WET110110400A0 CARBON TANK AIR INLET AIR VENTING MANIFOLD

More information

Quantity required : 1

WET110140201A0 - DOUBLE PIPE CLIP

13
P2R reference P2R reference 173523
Maker reference Maker reference WET110140201A0

WET110140201A0 DOUBLE MANIFOLD CLIP

More information

Quantity required : 3

WQ146B0635F62 - BOLT SPRING AND PLAIN WASHER ASSY

14
P2R reference P2R reference 173524
Maker reference Maker reference WQ146B0635F62

WQ146B0635F62 BOLT SPRING AND PLAIN WASHER ASSEMBLY

More information

Quantity required : 1

WQ146B1040F61 - BOLT SPRING WASHER AND PLAIN WASHER ASS

17
P2R reference P2R reference 173525
Maker reference Maker reference WQ146B1040F61

WQ146B1040F61 BOLT SPRING WASHER AND PLAIN WASHER ASS

More information

Quantity required : 4

WQ402B10T28F61 - RONDELLE

18
P2R reference P2R reference 173526
Maker reference Maker reference WQ402B10T28F61

WQ402B10T28F61 WASHER

More information

Quantity required : 4

WET110060100A0 - FRONT BELT FUEL TANK SUPPORT

19
P2R reference P2R reference 173527
Maker reference Maker reference WET110060100A0

WET110060100A0 FRONT BELT FUEL TANK BRACKET

More information

Quantity required : 1

WET110060200A0 - REAR BELT FUEL TANK SUPPORT

20
P2R reference P2R reference 173528
Maker reference Maker reference WET110060200A0

WET110060200A0 REAR BELT FUEL TANK BRACKET

More information

Quantity required : 1

WET110021800A0 - FLANGE FUEL PUMP

21
P2R reference P2R reference 173529
Maker reference Maker reference WET110021800A0

WET110021800A0 FLANGE FUEL PUMP

More information

Quantity required : 1

GASKET PUMP A FUEL OEM PIAGGIO PORTER NP6 2021 >-WET110021700A0

22
P2R reference P2R reference 173530
Maker reference Maker reference WET110021700A0

GASKET PUMP A FUEL OEM PIAGGIO PORTER NP6 2021 >-WET110021700A0

More information

Quantity required : 1

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

24
P2R reference P2R reference 151147
Maker reference Maker reference CM288916

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

More information

Quantity required : 2

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

26
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 3

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

27
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 3

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179

28
P2R reference P2R reference 71834
Maker reference Maker reference AP8150179

WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179

More information

Quantity required : 3

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

30
P2R reference P2R reference 151147
Maker reference Maker reference CM288916

SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916

More information

Quantity required : 2
