Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) ICE - 2025 PIAGGIO VU

06_châssis - circuits : 06.05 05_CIRCUIT COMMANDE EMBRAYAGE

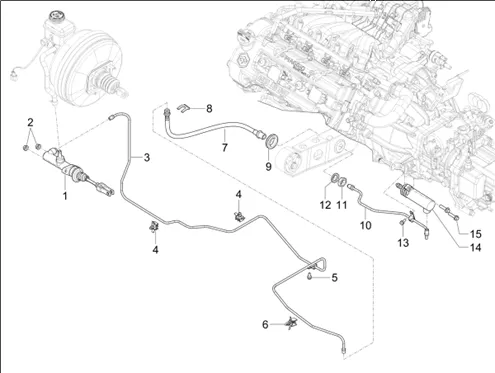

05_Circuit commande embrayage
Search
MAITRE CYLINDER EMETTEUR CLUTCH OEM PIAGGIO PORTER NP6 2021 >-WL0163030110A0

1
P2R reference P2R reference 173587
Maker reference Maker reference WL0163030110A0

MAITRE CYLINDER EMETTEUR CLUTCH OEM PIAGGIO PORTER NP6 2021 >-WL0163030110A0

More information

Quantity required : 1

WQ32008F61 - ÉROU HEXAGONAL BRIDE

2
P2R reference P2R reference 173208
Maker reference Maker reference WQ32008F61

WQ32008F61 ÉROU HEXAGONAL FLANGE

More information

Quantity required : 2

WL016300000006 - PIPE CLUTCH COMMAND N1

3
P2R reference P2R reference 173588
Maker reference Maker reference WL016300000006

WL016300000006 MANIFOLD CLUTCH COMMAND N1

More information

Quantity required : 1

WL0356007002A0 - DUAL TUBE CLIP

4
P2R reference P2R reference 173589
Maker reference Maker reference WL0356007002A0

WL0356007002A0 DUAL TUBE CLIP

More information

Quantity required : 2

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61

5
P2R reference P2R reference 173199
Maker reference Maker reference WQ146B0616F61

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61

More information

Quantity required : 1

W1102935600026 - SINGLE PIPE CLIP

6
P2R reference P2R reference 173590
Maker reference Maker reference W1102935600026

W1102935600026 SINGLE MANIFOLD CLIP

More information

Quantity required : 1

WL0162030505A0 - HOSE, CLUTCH CONTROL, N.2

7
P2R reference P2R reference 173591
Maker reference Maker reference WL0162030505A0

WL0162030505A0 HOSE, CLUTCH CONTROL, N. 2

More information

Quantity required : 1

WC3356007015A0 - CLIP ELASTIQUE

8
P2R reference P2R reference 173592
Maker reference Maker reference WC3356007015A0

WC3356007015A0 CLIP ELASTIC

More information

Quantity required : 1

W1102911400073 - PASSE-CABLE

9
P2R reference P2R reference 173593
Maker reference Maker reference W1102911400073

W1102911400073 GUIDE-CABLE

More information

Quantity required : 1

WL016200000245 - PIPE CLUTCH COMMAND N3

10
P2R reference P2R reference 173594
Maker reference Maker reference WL016200000245

WL016200000245 MANIFOLD CLUTCH COMMAND N3

More information

Quantity required : 1

WQ351B18T15F62 - ÉCROU HEXAGONAL

11
P2R reference P2R reference 173595
Maker reference Maker reference WQ351B18T15F62

WQ351B18T15F62 NUT HEXAGONAL

More information

Quantity required : 1

WQ41218F62 - EXTERNAL TOOTH LOCKING WASHER

12
P2R reference P2R reference 173596
Maker reference Maker reference WQ41218F62

WQ41218F62 EXTERNAL TOOTH LOCKING WASHER

More information

Quantity required : 1

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61

13
P2R reference P2R reference 173199
Maker reference Maker reference WQ146B0616F61

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-WQ146B0616F61

More information

Quantity required : 1

CYLINDER ESCLAVE DE CONTROL CLUTCH OEM PIAGGIO PORTER NP6 2021 >-WL016200000244

14
P2R reference P2R reference 173597
Maker reference Maker reference WL016200000244

CYLINDER ESCLAVE DE CONTROL CLUTCH OEM PIAGGIO PORTER NP6 2021 >-WL016200000244

More information

Quantity required : 1

WQ1840830F61 - VIS A TETE HEXAGONALE BRIDEE

15
P2R reference P2R reference 173207
Maker reference Maker reference WQ1840830F61

WQ1840830F61 SCREW A HEAD HEXAGONALE BRIDEE

More information

Quantity required : 2
