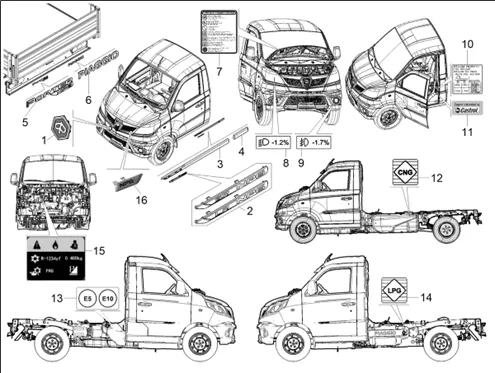

Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
04_châssis - carrosseries : 04.13 13_MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1255/Porter_NP6_(SW_2650)_ICE_-_2025_04.13.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/0/img/173410.JPG)
1 |
ECUSSON/LOGO " PIAGGIO " OEM PIAGGIO PORTER NP6 SW/TW/NPE-WET505011000A0 More informationQuantity required : 1 |
||||||
2 |
|
||||||
|
2 |
CM319901-PLATE " LR NP6 " G (METHANE) More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
2 |
CM319903-PLATE " SR NP6 " G (METHANE) More informationQuantity required : 1 |
||||||
|
2 |
PIVOT G40053900 |
||||||
|
2 |
CM319902-PLATE " LR NP6 " D (METHANE) More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
2 |
CM319904-PLATE " SR NP6 " D (METHANE) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/1/img/173411.jpg)
3 |
PROTECTOR DE PORTIERE FRONT LEFT OEM PIAGGIO PORTER NP6 2021 >-WET610172100A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/3/img/173413.jpg)
3 |
PROTECTOR DE PORTIERE FRONT RIGHT OEM PIAGGIO PORTER NP6 2021 >-WET610172400A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/2/img/173412.jpg)
4 |
PROTECTOR DE CABINE REAR LEFT OEM PIAGGIO PORTER NP6 2021 >-WET541013800A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/4/img/173414.jpg)
4 |
PROTECTOR DE CABINE REAR RIGHT OEM PIAGGIO PORTER NP6 2021 >-WET541013900A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/5/img/173415.jpg)
5 |
STICKER/STICKER/GRAPHIC PIAGGIO REAR OEM PIAGGIO PORTER NP6 2021 > WET505071000A0 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/1/6/img/173416.jpg)
6 |
STICKER/STICKER/GRAPHIC PIAGGIO REAR OEM PIAGGIO PORTER NP6 2021 >-WET505071001A0 More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/6/7/img/174267.jpg)
11 |
STICKER/STICKER/GRAPHIC CASTROL ORGIINE PIAGGIO COMMON A LA RANGE-2H002046 More informationQuantity required : 1 |
