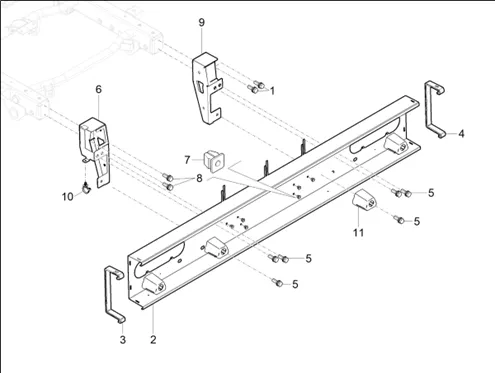

Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
05_châssis - plastiques : 05.03 03_CACHES ARRIÈRE - PARE-CHOC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1255/Porter_NP6_(SW_2650)_ICE_-_2025_05.03.png)
1 |
WET173080200A0 - VIS AVEC DOUBLE RONDELLE IMPERDABLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/6/0/4/5/img/216045.JPG)
2 |
PROTECTOR-CHOCS REAR (WITHOUT LATCH RIGHT ET LEFT) OEM PIAGGIO PORTER NP6 2021 >-WET403302071A0 More informationQuantity required : 1 |
|||||||||
|
3 |
WET85000000001 - SIDE COVER REAR BUMPER LH More informationQuantity required : 1 |
|||||||||
|
4 |
WET85000000002 - SIDE COVER REAR BUMPER RH More informationQuantity required : 1 |
|||||||||
|
5 |
WET173080200A0 - VIS AVEC DOUBLE RONDELLE IMPERDABLE More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/1/img/173501.jpg)
6 |
BRACKET LEFT PROTECTOR-CHOCS REAR OEM PIAGGIO PORTER NP6 2021 >-WET403302021A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
7 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 6 |
|||||||||
|
8 |
WET173080200A0 - VIS AVEC DOUBLE RONDELLE IMPERDABLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/2/img/173502.JPG)
9 |
BRACKET RIGHT PROTECTOR-CHOCS REAR OEM PIAGGIO PORTER NP6 2021 >-WET403302082A0 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
10 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 2 |
|||||||||
|
11 |
WET38700000003-COVER OF USS SENSOR More informationQuantity required : 4 |
|||||||||
