Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

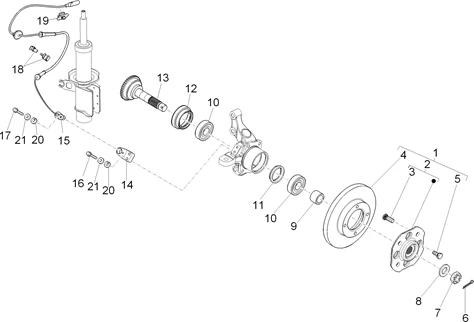

Suspensions - roues : 04.04 MOYEU DE LA ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/717/Porter_Multitech_E5_2013_04.04.PNG)
1 |
D4351087Z02 - MOYEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/4/8/img/122548.jpg)
2 |
HUB/FLASQUE FRONT WHEEL OEM PIAGGIO PORTER 1993 > 2020, CARGO 2007 > 2020-4350287Z01000 More informationQuantity required : 2 |
||||||
|
3 |
BOULON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/8/8/img/122088.jpg)
4 |
BRAKE DISC FRONT OEM PIAGGIO PORTER < 2020-4351287Z02000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/1/6/img/114916.jpg)
5 |
SCREW HUB ESSIEU FRONT OEM PIAGGIO PORTER 2020 <-9004119520000 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/5/6/img/110456.jpg)
6 |
AGRAFE/GOUPILLE DE SECURITE HUB DE FRONT WHEEL OEM PIAGGIO PORTER 1998 > 2020-D9004252016 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/2/3/img/113423.jpg)
7 |
NUT MOUNTING TRANSMISSION FRONT OEM PIAGGIO PORTER-D9004171053 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/9/3/img/112793.jpg)
8 |
WASHER PLATE (28X40X4. 5) FRONT WHEEL OEM PIAGGIO PORTER 2015 <-9004201224000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/8/6/img/116486.jpg)
9 |
GASKET HUB DE FRONT WHEEL OEM PIAGGIO PORTER 2020 <-9004311202000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/6/6/4/img/158664.jpg)
10 |
BEARING (25X62X17) HUB DE FRONT WHEEL OEM PIAGGIO PORTER, CARGO-D90043632426 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/3/8/img/117538.jpg)
11 |
BUSH OF TANK OEM PIAGGIO CARGO 2007 > 2017-644299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/8/3/img/117283.jpg)
12 |
BUSH/GASKET D'ETANCHEITE SHAFT DE FRONT WHEEL OEM PIAGGIO PORTER-9004311201000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/9/7/3/img/142973.jpg)
13 |
SPINDLE/FUSEE DE FRONT WHEEL OEM PIAGGIO PORTER 2010 > 2020-56593R6 More informationQuantity required : 2 |
||||||
|
14 |
B000523 BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/9/0/6/img/118906.jpg)
15 |
SENSOR OF SPEED/ABS BRAKE FRONT RIGHT OU LEFT OEM PIAGGIO PORTER 2013 > 2020-B000525 More informationQuantity required : 2 |
||||||
|
16 |
030052-SCREW S03005200 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
17 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 2 |
||||||
|
18 |
B004140 SPRING More informationQuantity required : 2 |
||||||
|
19 |
B005629 SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
20 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
21 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 6 |
