Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

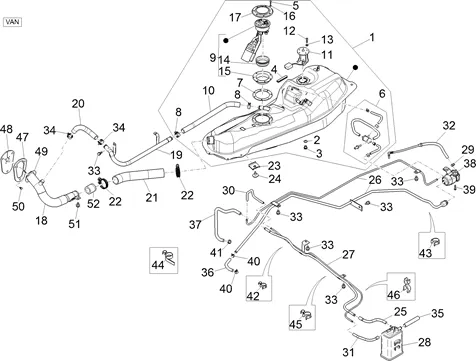

Châssis - parties plastiques - carrosseries : 02.38 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/717/Porter_Multitech_E5_2013_02.38.PNG)
1 |
B005294 - RESERVOIRE CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/9/7/2/img/123972.jpg)
1 |
TANK FUEL OEM PIAGGIO PORTER MULTITECH 2010 > 2020-B0231326 More informationQuantity required : 1 |
||||||
|
2 |
D9004430120 - JOINT BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
9004341011000 CAP More informationQuantity required : 1 |
||||||
|
4 |
PROTECTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
5 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 7 |
||||||
|
6 |
B005000 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
|
7 |
B005279 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/6/1/img/112961.jpg)
8 |
9004467228000 CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/3/3/5/img/122335.jpg)
9 |
FUEL PUMP OEM PIAGGIO PORTER MULTITECH 2010 > 2015-B023334 More informationQuantity required : 1 |
||||||
|
10 |
1E001428 HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/6/3/img/118063.jpg)
11 |
JAUGE A FUEL OEM PIAGGIO PORTER VAN 1992 > 2013/04-B023072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/9/1/img/118891.jpg)
11 |
JAUGE A FUEL OEM PIAGGIO PORTER VAN 05/2013 > 2020-B023089 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/0/img/65630.jpg)
12 |
SCREW TH (4X12) OEM PIAGGIO COMMON A LA RANGE-031027 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
13 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
14 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
|
15 |
B005278 FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
16 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 7 |
||||||
|
17 |
B005277 FLASQUE More informationQuantity required : 1 |
||||||
|
18 |
FITTING FUEL OEM PIAGGIO PORTER VAN 2020 <-7720187Z06000 More informationQuantity required : 1 |
||||||
|
19 |
B005565 HOSE DE PURGE More informationQuantity required : 1 |
||||||
|
20 |
1E001429 HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/9/7/8/img/134978.jpg)
21 |
HOSE REMPLISSAGE FUEL OEM PIAGGIO PORTER-1E001427 More informationQuantity required : 1 |
||||||
|
22 |
9004460117000 CLAMP More informationQuantity required : 2 |
||||||
|
23 |
D7714187Z04 - PROTECTION More informationQuantity required : 1 |
||||||
|
24 |
B005028 BOLT More informationQuantity required : 4 |
||||||
|
25 |
B007016 HOSE More informationQuantity required : 1 |
||||||
|
26 |
B005296 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
27 |
B005519 HOSE CANISTER More informationQuantity required : 1 |
||||||
|
28 |
B005269 - BOITE More informationQuantity required : 1 |
||||||
|
29 |
D9004467190 CLAMP More informationQuantity required : 1 |
||||||
|
30 |
B005521 HOSE More informationQuantity required : 1 |
||||||
|
31 |
1E001431 HOSE CANISTER N- 2 More informationQuantity required : 1 |
||||||
|
32 |
B005547 HOSE More informationQuantity required : 1 |
||||||
|
33 |
D9165260616 - BOULON More informationQuantity required : 6 |
||||||
|
33 |
D9165260616 - BOULON More informationQuantity required : 6 |
||||||
|
34 |
9004467228000 CLAMP More informationQuantity required : 2 |
||||||
|
35 |
B005289 HOSE More informationQuantity required : 1 |
||||||
|
36 |
B005288 HOSE More informationQuantity required : 1 |
||||||
|
37 |
B005523 HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/3/5/img/120635.jpg)
38 |
FUEL FILTER OEM PIAGGIO PORTER 1994 > 2020-2330087507 More informationQuantity required : 1 |
||||||
|
39 |
D9004119655 PIVOT More informationQuantity required : 2 |
||||||
|
40 |
D9004467190 CLAMP More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
41 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 1 |
||||||
|
42 |
B005047 CLAMP More informationQuantity required : 1 |
||||||
|
43 |
B004962 CLAMP More informationQuantity required : 1 |
||||||
|
44 |
B005044 CLAMP More informationQuantity required : 1 |
||||||
|
45 |
B004964 CLAMP More informationQuantity required : 2 |
||||||
|
46 |
B004965 CLAMP More informationQuantity required : 1 |
||||||
|
47 |
7729487Z01000 PLATE More informationQuantity required : 1 |
||||||
|
48 |
PROTECTION |
||||||
|
49 |
VIS |
||||||
|
50 |
D9004468231 CLAMP More informationQuantity required : 3 |
||||||
|
51 |
D9161140612 BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/5/5/img/114855.jpg)
52 |
VALVE DE FUEL OEM PIAGGIO PORTER VAN 2020 <-7710887Z01000 More informationQuantity required : 1 |
