Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

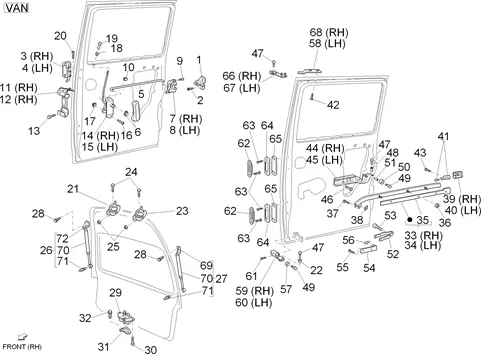

Châssis - parties plastiques - carrosseries : 02.10 COMPOSANTS DES PORTES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/717/Porter_Multitech_E5_2013_02.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/7/3/img/118873.jpg)
1 |
ENCLIQUETAGE DE DOOR SIDE OEM PIAGGIO PORTER VAN 2020 <-B005018 More informationQuantity required : 2 |
|||||||||
2 |
9004151029000 - VIS More informationQuantity required : 4 |
|||||||||
|
3 |
GRIP EXTERIEURE DE DOOR SIDE RIGHT OEM PIAGGIO PORTER VAN-B005335 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/3/8/img/119238.jpg)
4 |
GRIP EXTERIEURE DE DOOR SIDE LEFT OEM PIAGGIO PORTER VAN-B005336 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/4/9/img/112049.jpg)
5 |
TIRANT DE DOOR SIDE/REAR OEM PIAGGIO PORTER VAN 2020 <-6971387Z01000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/1/5/img/113315.jpg)
6 |
GRIP DE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-6927287Z01030 More informationQuantity required : 2 |
|||||||||
|
7 |
B005014 - SERRURE PORTE DR. More informationQuantity required : 1 |
|||||||||
|
8 |
B005015 LOCK DOOR GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/8/0/img/109980.jpg)
9 |
SCREW CRUCIFORME FRAISEE (6X15) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-1E003325 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/4/3/img/111143.jpg)
10 |
BUFFER DE DOOR OEM PIAGGIO PORTER 2020 <-6975987Z01000 More informationQuantity required : 2 |
|||||||||
|
11 |
6973087Z01000 - SERRURE More informationQuantity required : 1 |
|||||||||
|
12 |
6974087Z01000 LOCK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.jpg)
13 |
SCREW TH (6X15) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM288112 More informationQuantity required : 4 |
|||||||||
|
14 |
B005020 CONTROL FERM More informationQuantity required : 1 |
|||||||||
|
15 |
B005021 CONTROL FERM More informationQuantity required : 1 |
|||||||||
|
16 |
D9354016012 SCREW More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
17 |
GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/2/8/img/110428.jpg)
18 |
BUTTON BLOCAGE DE DOOR OEM PIAGGIO PORTER 2020 <-D6974787Z01 More informationQuantity required : 2 |
|||||||||
|
19 |
D9004480352 GUIDE-CABLE More informationQuantity required : 2 |
|||||||||
|
20 |
D9338116008 SCREW More informationQuantity required : 4 |
|||||||||
|
21 |
6880187Z02000 CHARNIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/9/5/img/110395.jpg)
22 |
D6833287Z01 - PIVOT More informationQuantity required : 2 |
|||||||||
|
23 |
6880187Z01000 CHARNIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/5/img/110045.jpg)
24 |
SCREW TH (8X16) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-9165140816000 More informationQuantity required : 4 |
|||||||||
|
25 |
261321 NUT More informationQuantity required : 2 |
|||||||||
|
26 |
VERIN HYDRAULIQUE DE HAYON RIGHT OEM PIAGGIO PORTER VAN-6895087Z82000 More informationQuantity required : 4 |
|||||||||
|
27 |
VERIN HYDRAULIQUE DE HAYON LEFT OEM PIAGGIO PORTER VAN-6896087Z82000 More informationQuantity required : 4 |
|||||||||
|
28 |
9161160614000 - BOULON More informationQuantity required : 4 |
|||||||||
|
29 |
B005016 LOCK More informationQuantity required : 1 |
|||||||||
|
30 |
D9161140612 BOLT More informationQuantity required : 2 |
|||||||||
|
31 |
B005017 PLATE LOCK More informationQuantity required : 1 |
|||||||||
|
32 |
D9004159295 SCREW More informationQuantity required : 2 |
|||||||||
|
33 |
6180787Z01000 - LISTEL More informationQuantity required : 1 |
|||||||||
|
34 |
6180887Z01000 LISTEL More informationQuantity required : 1 |
|||||||||
|
35 |
6182787Z01000 PANEL More informationQuantity required : 1 |
|||||||||
|
36 |
261323 NUT More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/4/img/109864.jpg)
37 |
SCREW TH 6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140614000 More informationQuantity required : 2 |
|||||||||
|
38 |
6837787Z01000 PLATE More informationQuantity required : 2 |
|||||||||
|
39 |
7565187Z01000 COVER More informationQuantity required : 1 |
|||||||||
|
40 |
7565287Z01000 COVER More informationQuantity required : 1 |
|||||||||
|
41 |
6183987Z01000 BRACKET More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/0/0/img/109900.jpg)
42 |
SCREW TH (8X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9162140816 More informationQuantity required : 4 |
|||||||||
|
43 |
D9161140614 BOLT More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/5/2/8/img/118528.jpg)
44 |
CHARNIERE DE DOOR SIDE RIGHT OEM PIAGGIO-6838087Z01000 More informationQuantity required : 1 |
|||||||||
|
45 |
6839087Z01000 - CHARNIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/1/img/110221.jpg)
46 |
SCREW FLANGE DE PORTIERE REAR OEM PIAGGIO PORTER VAN 2020 <-9004119383000 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/4/1/img/111041.jpg)
47 |
SPINDLE/PIVOT DE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-D9004241105 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/0/img/110380.jpg)
48 |
6833487Z01000 - PIVOT More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/1/0/img/110610.jpg)
49 |
SPINDLE/PIVOT DE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-9004241106000 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/6/5/img/115565.jpg)
50 |
BEARING PORTIERE SIDE (CENTRE) OEM PIAGGIO PORTER VAN-261355 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/5/6/img/109856.jpg)
51 |
SPACER DOOR REAR OEM PIAGGIO PORTER VAN-9004560155000 More informationQuantity required : 2 |
|||||||||
|
52 |
6832687Z01000 SPRING More informationQuantity required : 2 |
|||||||||
|
53 |
D9338515010 SCREW More informationQuantity required : 2 |
|||||||||
|
54 |
6941687Z01000 PLATE More informationQuantity required : 2 |
|||||||||
|
55 |
D9162160620 - BOULON More informationQuantity required : 4 |
|||||||||
|
56 |
6941987Z01000 BUFFER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/5/6/img/114156.jpg)
57 |
BEARING PORTIERE SIDE (BAS) OEM PIAGGIO PORTER VAN-B005029 More informationQuantity required : 2 |
|||||||||
|
58 |
6851787Z01000 PLATE More informationQuantity required : 1 |
|||||||||
|
59 |
6803787Z01000 - BRAS More informationQuantity required : 1 |
|||||||||
|
60 |
6803887Z01000 ARM ACCELERA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/7/img/110387.jpg)
61 |
SCREW FLANGE DE RIDELLE OEM PIAGGIO PORTER 2020 <-D9166160820 More informationQuantity required : 4 |
|||||||||
|
62 |
6941487Z01000 ARRET More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
63 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 16 |
|||||||||
|
64 |
6941387Z01000 ARRET More informationQuantity required : 4 |
|||||||||
|
65 |
6941887Z01000 - EPAISSEUR More informationQuantity required : 4 |
|||||||||
|
66 |
ARM RIGHT DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-D6803187Z01 More informationQuantity required : 1 |
|||||||||
|
67 |
D6803287Z01 ARM More informationQuantity required : 1 |
|||||||||
|
68 |
6831787Z01000 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
69 |
VERIN HYDRAULIQUE DE HAYON LEFT OEM PIAGGIO PORTER VAN-6896087Z82000 More informationQuantity required : 1 |
|||||||||
|
70 |
56605R SPRING More informationQuantity required : 2 |
|||||||||
|
71 |
56607R PIVOT More informationQuantity required : 2 |
|||||||||
|
72 |
VERIN HYDRAULIQUE DE HAYON RIGHT OEM PIAGGIO PORTER VAN-6895087Z82000 More informationQuantity required : 1 |
|||||||||
