Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E6 2015-2016 PIAGGIO VU

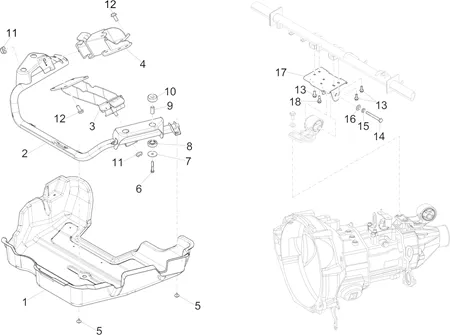

Châssis - parties plastiques - carrosseries : 02.06 SUPPORTS MOTEUR
Supports moteur
Search
1A005465 - SUPPORT

3
P2R reference P2R reference 135051
Maker reference Maker reference 1A005465

1A005465 BRACKET

More information

Quantity required : 1

1F000080 - EQUERRE

4
P2R reference P2R reference 135066
Maker reference Maker reference 1F000080

1F000080 BRACKET

More information

Quantity required : 1

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-264462

5
P2R reference P2R reference 111768
Maker reference Maker reference 264462

SCREW TH (6X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-264462

More information

Quantity required : 4

SCREW TH (10X59) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9004101431

6
P2R reference P2R reference 111898
Maker reference Maker reference D9004101431

SCREW TH (10X59) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9004101431

More information

Quantity required : 4

WASHER PLATE (10. 4X46X3) OEM PIAGGIO COMMON A LA RANGE-9004201291000

7
P2R reference P2R reference 111503
Maker reference Maker reference 9004201291000

WASHER PLATE (10. 4X46X3) OEM PIAGGIO COMMON A LA RANGE-9004201291000

More information

Quantity required : 4

9004540073000 - TAMPON

8
P2R reference P2R reference 111255
Maker reference Maker reference 9004540073000
Replaced by référence Replaced by référence 207646

9004540073000 - TAMPON

More information

Quantity required : 4

SPACER BRACKET ENGINE OEM PIAGGIO PORTER 2020 <-D9004560252

9
P2R reference P2R reference 112235
Maker reference Maker reference D9004560252

SPACER BRACKET ENGINE OEM PIAGGIO PORTER 2020 <-D9004560252

More information

Quantity required : 4

9004540074000 - TAMPON

10
P2R reference P2R reference 111235
Maker reference Maker reference 9004540074000
Replaced by référence Replaced by référence 207647

9004540074000 - TAMPON

More information

Quantity required : 4

D9004170307 - ECROU

11
P2R reference P2R reference 110750
Maker reference Maker reference D9004170307

D9004170307 NUT

More information

Quantity required : 2

B010427 - VIS

12
P2R reference P2R reference 113041
Maker reference Maker reference B010427

B010427 SCREW

More information

Quantity required : 9

D9165160825 - BOULON

13
P2R reference P2R reference 110787
Maker reference Maker reference D9165160825

D9165160825 BOLT

More information

Quantity required : 3

262125 - BOULON

14
P2R reference P2R reference 110505
Maker reference Maker reference 262125

262125 BOLT

More information

Quantity required : 1

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

15
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

16
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

More information

Quantity required : 1

B007207 - PLAQUE SUPPORT MOTEUR

17
P2R reference P2R reference 117011
Maker reference Maker reference B007207

B007207 PLATE BRACKET ENGINE

More information

Quantity required : 1

D9004119554 - BOULON

18
P2R reference P2R reference 110748
Maker reference Maker reference D9004119554

D9004119554 BOLT

More information

Quantity required : 1
