Vehicle Exploded View - APRILIA PEGASO 650 1992-1996 APRILIA

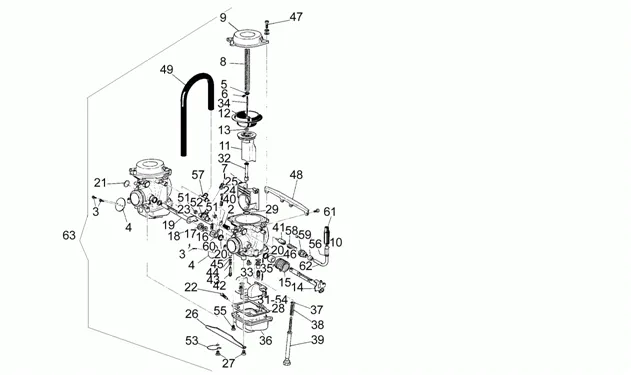

Moteur : 18 CARBURATEUR
Carburateur
Search
AP8122862 - FILTRE ESSENCE

1
P2R reference P2R reference 47281
Maker reference Maker reference AP8122862

AP8122862 - FILTRE ESSENCE

More information

Quantity required : 1

AP8122847 - COUVERCLE;

2
P2R reference P2R reference 47273
Maker reference Maker reference AP8122847

AP8122847 - COUVERCLE;

More information

Quantity required : 1

Vis;

3
P2R reference P2R reference
Maker reference Maker reference AP8122806

Vis;

VALVE A PAPILLON

4
P2R reference P2R reference
Maker reference Maker reference AP8122810

VALVE A PAPILLON

AP8122836 - BAGUE;

5
P2R reference P2R reference 47270
Maker reference Maker reference AP8122836

AP8122836 - BAGUE;

More information

Quantity required : 1

AP8106475 - BAGUE

6
P2R reference P2R reference 45543
Maker reference Maker reference AP8106475

AP8106475-BUSH

More information

Quantity required : 1

AP8122840 - BLOC SOUPAPE;

7
P2R reference P2R reference 47272
Maker reference Maker reference AP8122840

AP8122840 - BLOC SOUPAPE;

More information

Quantity required : 1

Ressort;

8
P2R reference P2R reference
Maker reference Maker reference AP8122821

Ressort;

AP8122850 - COUVERCLE;

9
P2R reference P2R reference 47275
Maker reference Maker reference AP8122850

AP8122850 - COUVERCLE;

More information

Quantity required : 1

Réglage câble;

10
P2R reference P2R reference
Maker reference Maker reference AP8122859

Réglage câble;

Soupape;

11
P2R reference P2R reference
Maker reference Maker reference AP8122811

Soupape;

MEMBRANE OF CARBURETTOR OEM PIAGGIO APRILIA 650 PEGASO 1992 > 2000-AP8122852

12
P2R reference P2R reference 47276
Maker reference Maker reference AP8122852

MEMBRANE OF CARBURETTOR OEM PIAGGIO APRILIA 650 PEGASO 1992 > 2000-AP8122852

More information

Quantity required : 1

AP8122860 - BAGUE;

13
P2R reference P2R reference 47279
Maker reference Maker reference AP8122860

AP8122860 - BAGUE;

More information

Quantity required : 1

Groupe arbre;

14
P2R reference P2R reference
Maker reference Maker reference AP8122841

Groupe arbre;

Ressort;

15
P2R reference P2R reference
Maker reference Maker reference AP8122845

Ressort;

Levier gaz;

16
P2R reference P2R reference
Maker reference Maker reference AP8122851

Levier gaz;

AP8122861 - RONDELLE

17
P2R reference P2R reference 47280
Maker reference Maker reference AP8122861

AP8122861 - RONDELLE

More information

Quantity required : 1

AP8122816 - ECROU;

18
P2R reference P2R reference 47264
Maker reference Maker reference AP8122816

AP8122816 - ECROU;

More information

Quantity required : 1

Arbre soupape papillon;

19
P2R reference P2R reference
Maker reference Maker reference AP8122842

Arbre soupape papillon;

AP8122801 - JOINT SPI;

20
P2R reference P2R reference 47257
Maker reference Maker reference AP8122801

AP8122801 - JOINT SPI;

More information

Quantity required : 2

Bouchon;

21
P2R reference P2R reference
Maker reference Maker reference AP8122817

Bouchon;

Vis;

22
P2R reference P2R reference
Maker reference Maker reference AP8122828

Vis;

Ressort;

23
P2R reference P2R reference
Maker reference Maker reference AP8122818

Ressort;

Ressort;

24
P2R reference P2R reference
Maker reference Maker reference AP8122804

Ressort;

Vis;

25
P2R reference P2R reference
Maker reference Maker reference AP8122837

Vis;

Plaque;

26
P2R reference P2R reference
Maker reference Maker reference AP8122843

Plaque;

Vis;

27
P2R reference P2R reference
Maker reference Maker reference AP8122819

Vis;

FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1992>2000 -AP8122839

28
P2R reference P2R reference 47271
Maker reference Maker reference AP8122839

FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1992>2000 -AP8122839

More information

Quantity required : 1

Joint torique;

29
P2R reference P2R reference
Maker reference Maker reference AP8122831

Joint torique;

AP8122813 - FLOTTEUR;

30
P2R reference P2R reference 47262
Maker reference Maker reference AP8122813

AP8122813 - FLOTTEUR;

More information

Quantity required : 1

SUPPORT COMPLET

31
P2R reference P2R reference
Maker reference Maker reference AP8122846

SUPPORT COMPLET

AP8122807 - GICLEUR;

32
P2R reference P2R reference 47260
Maker reference Maker reference AP8122807

AP8122807 - GICLEUR;

More information

Quantity required : 1

GICLEUR PRINCIPAL

33
P2R reference P2R reference
Maker reference Maker reference AP8122825

GICLEUR PRINCIPAL

AIGUILLE

34
P2R reference P2R reference
Maker reference Maker reference AP8122822

AIGUILLE

POINTEAU OF CARBURETTOR OEM PIAGGIO APRILIA 650 PEGASO 1993 > 2000-AP8122808

35
P2R reference P2R reference 47261
Maker reference Maker reference AP8122808

POINTEAU OF CARBURETTOR OEM PIAGGIO APRILIA 650 PEGASO 1993 > 2000-AP8122808

More information

Quantity required : 1

CUVE CARBURATEUR

36
P2R reference P2R reference
Maker reference Maker reference AP8122812

CUVE CARBURATEUR

AP8122832 - RONDELLE;

37
P2R reference P2R reference 47268
Maker reference Maker reference AP8122832

AP8122832-WASHER

More information

Quantity required : 1

AP8122805 - RESSORT;

38
P2R reference P2R reference 47259
Maker reference Maker reference AP8122805

AP8122805-SPRING

More information

Quantity required : 1

REGULATEUR DE CABLE

39
P2R reference P2R reference
Maker reference Maker reference AP8122849

REGULATEUR DE CABLE

Collier clic;

40
P2R reference P2R reference
Maker reference Maker reference AP8122856

Collier clic;

AP8122853 - PISTON CPL.;

41
P2R reference P2R reference 47277
Maker reference Maker reference AP8122853

AP8122853 - PISTON CPL.;

More information

Quantity required : 1

Vis embrayage;

42
P2R reference P2R reference
Maker reference Maker reference AP8122830

Vis embrayage;

AP8122829 - RESSORT;

43
P2R reference P2R reference 47267
Maker reference Maker reference AP8122829

AP8122829 - RESSORT;

More information

Quantity required : 1

AP8122854 - RONDELLE;

44
P2R reference P2R reference 47278
Maker reference Maker reference AP8122854

AP8122854 - RONDELLE;

More information

Quantity required : 1

O-RING SCREW REGLAGE CARBURETTOR OEM PIAGGIO APRILIA 125 LEONARDO 1996 > 2001, 650 PEGASO 1992 > 2000-AP8122827

45
P2R reference P2R reference 47266
Maker reference Maker reference AP8122827

O-RING SCREW REGLAGE CARBURETTOR OEM PIAGGIO APRILIA 125 LEONARDO 1996 > 2001, 650 PEGASO 1992 > 2000-AP8122827

More information

Quantity required : 1

Bague;

46
P2R reference P2R reference
Maker reference Maker reference AP8122834

Bague;

AP8122833 - VIS;

47
P2R reference P2R reference 47269
Maker reference Maker reference AP8122833

AP8122833 - VIS;

More information

Quantity required : 2

Plaque;

48
P2R reference P2R reference
Maker reference Maker reference AP8122844

Plaque;

TUYAU DE POMPE

49
P2R reference P2R reference
Maker reference Maker reference AP8122814

TUYAU DE POMPE

Joint;

50
P2R reference P2R reference
Maker reference Maker reference AP8122826

Joint;

Joint spi;

51
P2R reference P2R reference
Maker reference Maker reference AP8122838

Joint spi;

Raccord;

52
P2R reference P2R reference
Maker reference Maker reference AP8122809

Raccord;

Guide-câble;

53
P2R reference P2R reference
Maker reference Maker reference AP8122835

Guide-câble;

AP8122848 - SUPPORT COMPLET;

54
P2R reference P2R reference 47274
Maker reference Maker reference AP8122848

AP8122848-BRACKET COMPLETE

More information

Quantity required : 1

VIS

55
P2R reference P2R reference
Maker reference Maker reference AP8122820

VIS

Ecrou;

56
P2R reference P2R reference
Maker reference Maker reference AP8122824

Ecrou;

AP8122815 - TUYAU DE RACCORD;

57
P2R reference P2R reference 47263
Maker reference Maker reference AP8122815

AP8122815 - TUYAU DE RACCORD;

More information

Quantity required : 1

Ressort;

58
P2R reference P2R reference
Maker reference Maker reference AP8122803

Ressort;

AP8122802 - SUPPORT GUIDE;

59
P2R reference P2R reference 47258
Maker reference Maker reference AP8122802

AP8122802 - SUPPORT GUIDE;

More information

Quantity required : 1

Bouchon;

60
P2R reference P2R reference
Maker reference Maker reference AP8122855

Bouchon;

AP8122823 - COUVERCLE;

61
P2R reference P2R reference 47265
Maker reference Maker reference AP8122823

AP8122823 - COUVERCLE;

More information

Quantity required : 1

Guide-câble;

62
P2R reference P2R reference
Maker reference Maker reference AP8122858

Guide-câble;

CARBURATEUR 650 PEGASO

63
P2R reference P2R reference
Maker reference Maker reference AP8106250

CARBURATEUR 650 PEGASO
