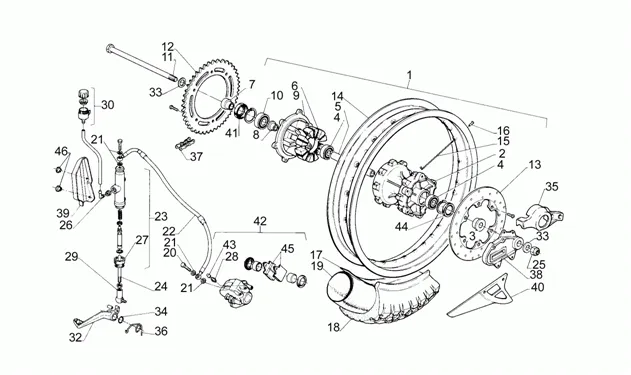

Chassis : 10 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_10.PNG)
1 |
Roue arrière nue |
||||||
|
1 |
ROUE ARRIERE NUE |
||||||
|
2 |
AP8125608 - MOYEU =8125594 More informationQuantity required : 1 |
||||||
|
3 |
AP8125442-SPACER REAR WHEEL More informationQuantity required : 1 |
||||||
|
4 |
AP8110045 - ROULEMENT MOYEU More informationQuantity required : 2 |
||||||
|
5 |
AP8125427-SPACER INTERNE More informationQuantity required : 1 |
||||||
|
6 |
AP8125679 - CAOUTCHOUC ELASTIQUE; More informationQuantity required : 1 |
||||||
|
7 |
AP8125425-SPACER More informationQuantity required : 1 |
||||||
|
8 |
AP8125423-BUSH SPACER EXTERNE More informationQuantity required : 1 |
||||||
|
9 |
AP8125563-DOOR-COURONNE More informationQuantity required : 1 |
||||||
|
10 |
AP8110050 - ROULEMENT ELASTIQUE More informationQuantity required : 1 |
||||||
|
11 |
AP8125399 - AXE ROUE AR*8125649 More informationQuantity required : 1 |
||||||
|
11 |
AP8125649-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
|
12 |
AP8107069 - COURONNE More informationQuantity required : 1 |
||||||
|
13 |
AP8113628 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
14 |
AP8108471 - JANTE More informationQuantity required : 1 |
||||||
|
14 |
JANTE ANNODISEE 17" |
||||||
|
15 |
AP8108759-SPOKE More informationQuantity required : 36 |
||||||
|
16 |
AP8108672-NIPPLES More informationQuantity required : 36 |
||||||
|
17 |
RIM TAPE REAR WHEEL 18 OEM APRILIA PEGASO-AP8109281 More informationQuantity required : 1 |
||||||
|
18 |
BAGUE |
||||||
|
19 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
20 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
21 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
|
22 |
DURITE FREIN AR. |
||||||
|
22 |
FLEXIBLE FREIN ARRIERE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/9/1/img/39491.jpg)
23 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO APRILIA 1000 RSV-2 1998 > 2008, TUONO V2 2002 > 2009, 600-650 PEGASO 1990 > 1996-852218 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/4/img/73464.jpg)
23 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO MOTO-GUZZI PEGASO, BREVA, NTX, QUOTA-GU30667030 More informationQuantity required : 1 |
||||||
|
24 |
AP8121842-POUSSOIR CDE MAI-CYL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/8/img/56998.jpg)
24 |
ROD POUSSOIR MAITRE CYLINDER REAR OEM APRILIA 650 PEGASO 1992 > 1996/125 RS 1995 > 2005-AP8221074 More informationQuantity required : 1 |
||||||
|
25 |
Ecrou roue arriere |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
26 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
|
27 |
SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288 More informationQuantity required : 1 |
||||||
|
28 |
AP8113549 - PURGE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
29 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
|
30 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
||||||
|
32 |
AP8146400 - LEVIER FREIN ARRIERE CAT.; More informationQuantity required : 1 |
||||||
|
33 |
RONDELLE AXE ROUE ARR. |
||||||
|
34 |
AP8120196 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
35 |
COUVRE ETRIER ARR. GRIS |
||||||
|
35 |
SUPPORT |
||||||
|
35 |
CACHE ETRIER 650 95 |
||||||
|
36 |
AP8121808-RESS. HEL. CYL. TRACT. More informationQuantity required : 1 |
||||||
|
37 |
CHAINE=8107109 |
||||||
|
38 |
AP8134150 - PLAQUE FIXATION*8134150 More informationQuantity required : 1 |
||||||
|
38 |
AP8134481 - PLAQUE ANCRAGE PINCE PEINT; More informationQuantity required : 1 |
||||||
|
39 |
CACHE M.C AR |
||||||
|
39 |
COUVERCLE PIGNON SBV |
||||||
|
39 |
CACHE MAITRE CYLINDRE AR |
||||||
|
40 |
AP8131228 - CACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/0/8/img/47708.jpg)
41 |
SEAL RING GASKET- FOR REAR WHEEL HUB "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, 125-650 PEGASO -AP8125462- More informationQuantity required : 1 |
||||||
|
42 |
AP8113425 - ETRIER FREIN ARR=8113337 More informationQuantity required : 1 |
||||||
|
42 |
Pince frein AR |
||||||
|
43 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
44 |
SEAL RING GASKET- FOR REAR WHEEL HUB "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, 125-650 PEGASO -AP8125462- More informationQuantity required : 1 |
||||||
|
45 |
Plaquettes-paire |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
46 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 2 |
