Vehicle Exploded View - APRILIA PEGASO 650 1992-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

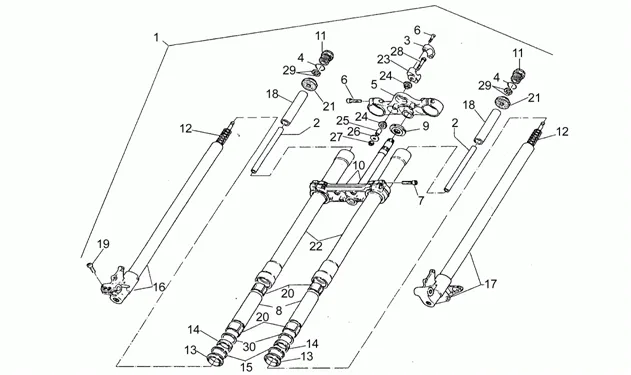

Chassis : 4 FOURCHE AV. T
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_4.PNG)
1 |
FOURCHE 650 96' |
||||||
|
2 |
Tuyau guide ressort |
||||||
|
3 |
AP8123604-CAVALIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/1/3/img/71513.jpg)
4 |
O RING OF FORK OEM APRILIA 125 RS, RX 2010 <-AP8123346 More informationQuantity required : 2 |
||||||
|
5 |
AP8123723 - PLAQUE SUP. FOURCHE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
6 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 6 |
||||||
|
7 |
Vis |
||||||
|
8 |
Entretoise; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/8/2/img/72082.jpg)
9 |
NUT SERRAGE STEERING OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA-AP8163500 More informationQuantity required : 1 |
||||||
|
10 |
AP8123611 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
|
11 |
AP8123348-OEM MOPED CAP OF FORK APRILIA 50-125 RS, 650 PEGASO, 125 SC More informationQuantity required : 2 |
||||||
|
12 |
Ressort |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
13 |
PROTECTOR POUSSIERE FORK OEM PIAGGIO APRILIA 50-125-250 RS/DERBI SENDA (MARZOCCHI) 2003 > 2011/MOTO-GUZZI V7, BREVA NEVADA-599502 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
14 |
OIL SEAL (40X52. 2X10/10. 5) DE FORK MARZOCCHI OEM PIAGGIO 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7-599501 More informationQuantity required : 2 |
||||||
|
15 |
AP8123199 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
16 |
TUBE DE FOURCHE D. PEG96 |
||||||
|
17 |
SUPPORT GAUCHE ROUE + TU |
||||||
|
18 |
Tuyau précharge |
||||||
|
19 |
AP8123920 - VIS; More informationQuantity required : 2 |
||||||
|
20 |
AP8123689 - DOUILLE DE COULISSEMENT; More informationQuantity required : 4 |
||||||
|
21 |
AP8123357-BUSH More informationQuantity required : 2 |
||||||
|
22 |
FOURREAU D.40 NOIR |
||||||
|
23 |
AP8123605-CAVALIER INF. More informationQuantity required : 2 |
||||||
|
24 |
AP8103504-RUBBER MOUNT More informationQuantity required : 4 |
||||||
|
25 |
AP8123510-HOSE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
26 |
WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721 More informationQuantity required : 2 |
||||||
|
27 |
AP8123512-NUT More informationQuantity required : 2 |
||||||
|
28 |
AP8123513 - VIS More informationQuantity required : 2 |
||||||
|
29 |
AP8123441 - DEMI-CLAVETTES; More informationQuantity required : 4 |
||||||
|
30 |
Rondelle bouche guide; |
