Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

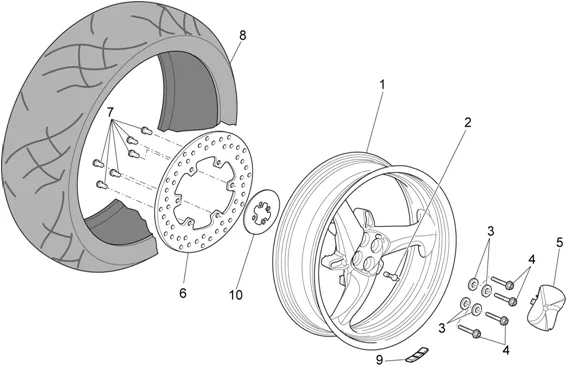

Chassis : 33.34 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.34.PNG)
1 |
977339-WHEEL POST NUDA 5, 50X17 GRIGIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
2 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/9/img/128859.jpg)
3 |
BUSH CONIQUE OEM MOTO GUZZI 1200 GRISO, NORGE, STELVIO-GU05632730 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/4/2/img/132842.jpg)
4 |
SCREW MOUNTING DE WHEEL (12X65) OEM PIAGGIO MOTO-GUZZI BELLAGIO, BREVA, STELVIO, GRISO, NORGE-GU97202665 More informationQuantity required : 4 |
||||||
|
5 |
977340 - COPERCHIO RUOTA POST NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/1/3/img/98313.jpg)
6 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, SPORT 2006 >, STELVIO 2008 >, 940 BELLAGIO 2007 > 2013-85227R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/8/img/130868.jpg)
7 |
SCREW BTR (8X25) MOUNTING BRAKE DISC REAR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU30611460 More informationQuantity required : 6 |
||||||
|
9 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
10 |
977056-PARAPOLVERE WHEEL POST More informationQuantity required : 1 |
