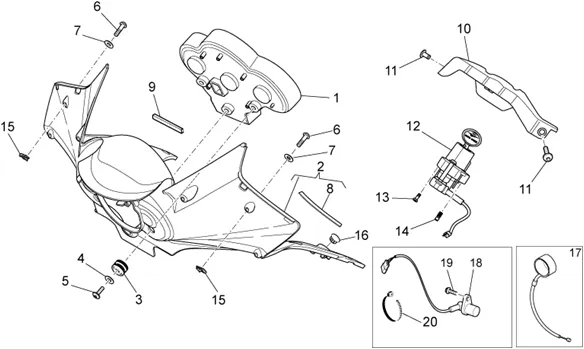

Chassis : 33.22 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.22.PNG)
1 |
883567-CRUSCOTTO KM NORGE * More informationQuantity required : 1 |
||||||
|
1 |
883568-CRUSCOTTO NORGE MPH More informationQuantity required : 1 |
||||||
|
2 |
977857 - PLANCIA CRUSCOTTO NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
3 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
4 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
5 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
6 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
7 |
WASHER NYLON (4X9X0. 8)) OEM PIAGGIO COMMON A LA RANGE-AP8144565 More informationQuantity required : 8 |
||||||
|
8 |
978589-GUARNIZIONE PER PLANCIA TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/7/9/3/img/101793.jpg)
9 |
RUBBER ANTI-VIBRATION INSTRUMENT CLUSTER OEM MOTO GUZZI NORGE, V11-GU01573960 More informationQuantity required : 1 |
||||||
|
10 |
977670-COPERTURA MANUBRIO COMPLETA More informationQuantity required : 1 |
||||||
|
10 |
977670F2-COPERTURA MANUBRIO GREY EXCALIBUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
|
12 |
GU05782530-BLOC STARTER MOTOR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
13 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
14 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) OEM PIAGGIO COMMON A LA RANGE-AP8152238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
15 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 6 |
||||||
|
16 |
978261-CAP EL 19X23, 2X10, 3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/8/6/img/100886.jpg)
17 |
ANTENNE DISPOSITIF ANTI-DEMARRAGE OEM MOTO GUZZI BREVA, NORGE, STELVIO-981087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/4/img/71574.jpg)
18 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, SPORT/APRILIA CAPONORD-AP8124985 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
19 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 1 |
||||||
|
20 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 2 |
