Vehicle Exploded View - MOTO-GUZZI NORGE 850 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

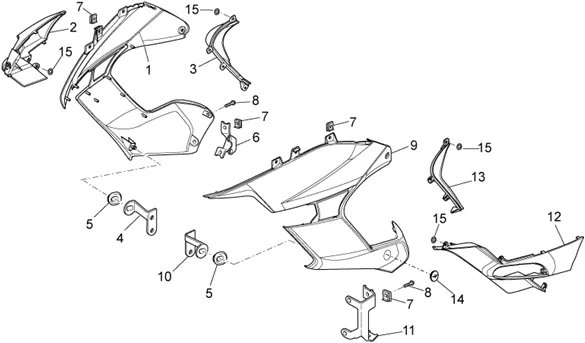

Chassis : 33.16 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/506/Norge_850_2007_33.16.PNG)
1 |
977104 - FIANCATA DX NORGE GREZZO More informationQuantity required : 1 |
||||||
|
1 |
977104F2 - FIANCATA DX GRIGIO EXCALIBUR More informationQuantity required : 1 |
||||||
|
1 |
977104ND-FIANCATA DX NERO GRAFITE More informationQuantity required : 1 |
||||||
|
1 |
977104Y01-FIANCATA DX ROSSO CORSA More informationQuantity required : 1 |
||||||
|
2 |
977106-BRACKET FRECCIA DX * More informationQuantity required : 1 |
||||||
|
3 |
977108 - DEFLETTORE DX CROMATO More informationQuantity required : 1 |
||||||
|
4 |
977125-PLATE SUP DX FISS FIANCATA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/2/img/72272.jpg)
5 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220162 More informationQuantity required : 2 |
||||||
|
6 |
977119-PLATE RITEGNO FIANCATA DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
7 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 4 |
||||||
|
9 |
977103 - FIANCATA SX NORGE GREZZO More informationQuantity required : 1 |
||||||
|
9 |
977103F2 - FIANCATA SX GRIGIO EXCALIBUR More informationQuantity required : 1 |
||||||
|
9 |
977103ND - FIANCATA SX NERO GRAFITE More informationQuantity required : 1 |
||||||
|
9 |
977103Y01-FIANCATA SX ROSSO CORSA More informationQuantity required : 1 |
||||||
|
10 |
977126-PLATE SUP SX FISS FIANCATA More informationQuantity required : 1 |
||||||
|
11 |
977121-PLATE RITEGNO FIANCATA SX More informationQuantity required : 1 |
||||||
|
12 |
977105-BRACKET FRECCIA SX * More informationQuantity required : 1 |
||||||
|
13 |
977107 - DEFLETTORE SX CROMATO More informationQuantity required : 1 |
||||||
|
14 |
GU05002130-CAP * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
15 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 8 |
