Vehicle Exploded View - GILERA NEXUS 500 -SP-E3 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

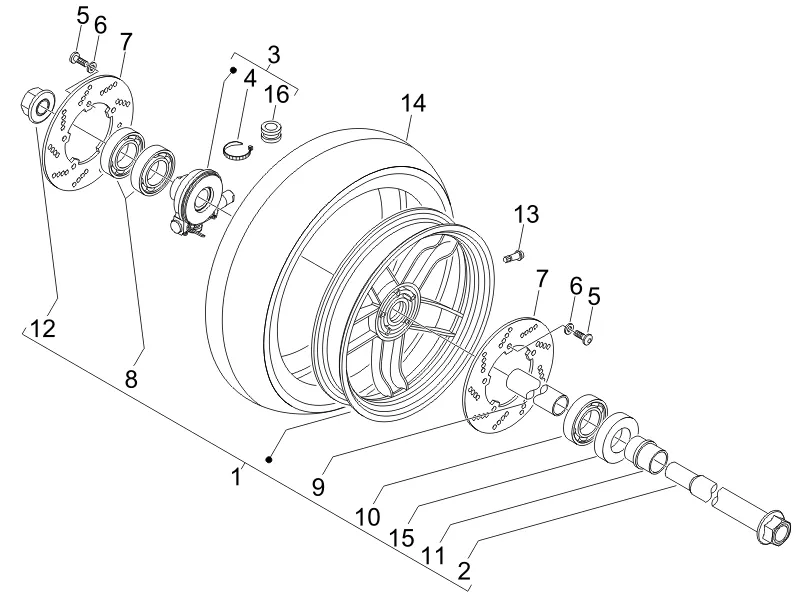

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/187/Nexus_500_-SP-_E3_2006-20-177.png)
1 |
647776 - JANTE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/4/img/67054.jpg)
2 |
564446-SPINDLE WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/3/img/67053.jpg)
3 |
SENSOR/WHEEL PHONIQUE DE INSTRUMENT CLUSTER OEM PIAGGIO 125-250-500 X9 2003 >/GILERA 125-250-300-500 2007 > NEXUS/APRILIA 125-300 SR-MAX 2011 >-56436R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 5 |
||||||
|
6 |
274706-WASHER More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/9/img/67039.jpg)
7 |
BRAKE DISC MAXI SCOOTER OEM PIAGGIO 125-250 X7, X8, X-EVO, 500 X9, 400-500 BEVERLY/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX AV-56393R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
8 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
|
9 |
564447-SPACER More informationQuantity required : 1 |
||||||
|
10 |
649911-BEARING More informationQuantity required : 1 |
||||||
|
11 |
564448-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
12 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
13 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
14 |
PNEU AV PIRELLI 120/70-15 |
||||||
|
14 |
497633 - PNEU 120/70-15" MICHELIN More informationQuantity required : 1 |
||||||
|
15 |
564489-CUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/2/img/66992.jpg)
16 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-560136 More informationQuantity required : 1 |
