Vehicle Exploded View - GILERA NEXUS 500 -SP-E3 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

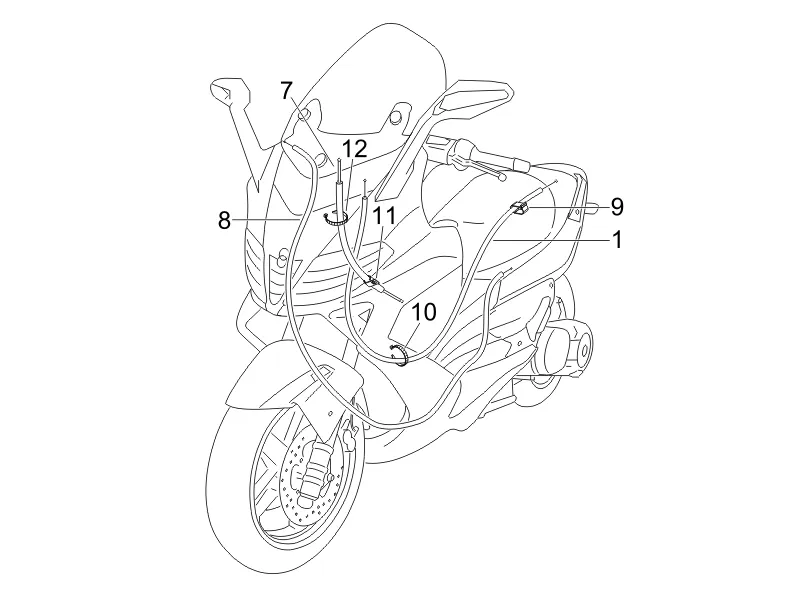

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/187/Nexus_500_-SP-_E3_2006-20-189.png)
1 |
CM012827-TRANSMISSION SEAT More informationQuantity required : 1 |
||||||
|
7 |
975629 - TRANSMISSION GAZ More informationQuantity required : 1 |
||||||
|
8 |
975824 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/9/img/65739.jpg)
9 |
CLIPS SPRING OEM PIAGGIO COMMON A LA RANGE-140435 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
11 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 2 |
||||||
|
12 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
