Vehicle Exploded View - GILERA NEXUS 500 -SP-E3 2006-2007 GILERA

Moteur : 01.36 CORPS PAPILLON - INJECTEUR - RACCORD D'ADMISSION

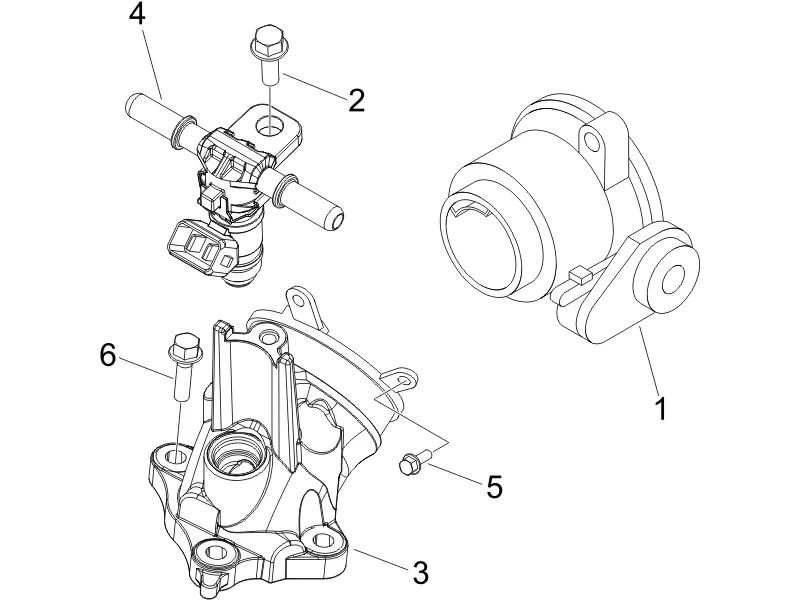

Corps papillon - Injecteur - Raccord d'admission
Search
641221 - CARBURATEUR

1
P2R reference P2R reference 67918
Maker reference Maker reference 641221

641221 - CARBURATEUR

More information

Quantity required : 1

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

2
P2R reference P2R reference 68890
Maker reference Maker reference 830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

More information

Quantity required : 1

INTAKE MANIFOLD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -830062-

3
P2R reference P2R reference 68891
Maker reference Maker reference 830062

INTAKE MANIFOLD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -830062-

More information

Quantity required : 1

INJECTEUR COMPLETE OEM PIAGGIO 400 X8 2004 > 2006, X-EVO 2007 >, 500 BEVERLY 2006 >, X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 500 ATLANTIC 2001 >-8304275

4
P2R reference P2R reference 68915
Maker reference Maker reference 8304275

INJECTEUR COMPLETE OEM PIAGGIO 400 X8 2004 > 2006, X-EVO 2007 >, 500 BEVERLY 2006 >, X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 500 ATLANTIC 2001 >-8304275

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

5
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 3

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

6
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 3

INJECTEUR COMPLETE OEM PIAGGIO 400 X8 2004 > 2006, X-EVO 2007 >, 500 BEVERLY 2006 >, X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 500 ATLANTIC 2001 >-8304275

7
P2R reference P2R reference 68915
Maker reference Maker reference 8304275

INJECTEUR COMPLETE OEM PIAGGIO 400 X8 2004 > 2006, X-EVO 2007 >, 500 BEVERLY 2006 >, X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 500 ATLANTIC 2001 >-8304275

More information

Quantity required : 1
