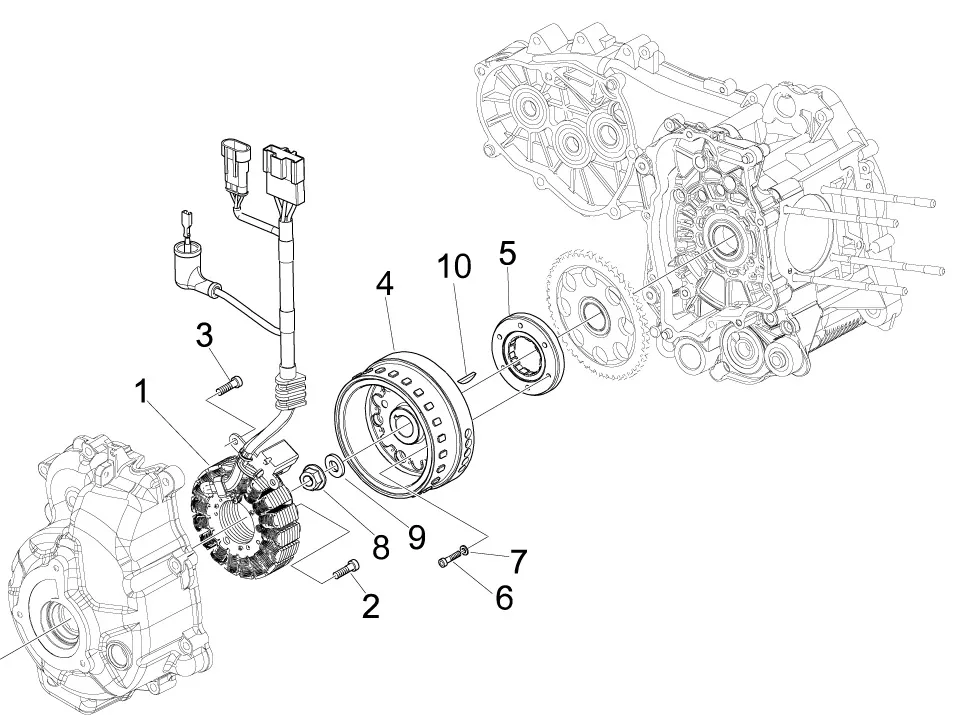

Vehicle Exploded View - GILERA NEXUS 300 ie E3 2009-2011 GILERA

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
STATOR OEM PIAGGIO 250-300 VESPA GTS, BEVERLY, CARNABY, 250 X7, X8, X-EVO, 125 MP3I/GILERA 125-250-300 NEXUS/APRILIA 125 SR MAX, 250-300 ATLANTIC, SCARABEO, SPORT-CITY (ENGINE INJECTION)-58070R

1
P2R reference P2R reference 67182
Maker reference Maker reference 58070R

STATOR OEM PIAGGIO 250-300 VESPA GTS, BEVERLY, CARNABY, 250 X7, X8, X-EVO, 125 MP3I/GILERA 125-250-300 NEXUS/APRILIA 125 SR MAX, 250-300 ATLANTIC, SCARABEO, SPORT-CITY (ENGINE INJECTION)-58070R

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564

2
P2R reference P2R reference 67347
Maker reference Maker reference 597564

SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564

More information

Quantity required : 3

1A003111 - VIS M5X10

3
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 2

873034 - ROTOR

4
P2R reference P2R reference 70460
Maker reference Maker reference 873034

873034-ROTOR

More information

Quantity required : 1

WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875

5
P2R reference P2R reference 149153
Maker reference Maker reference 8494905

WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875

More information

Quantity required : 1

SCREW BTR (6X24) OEM PIAGGIO COMMON A LA RANGE-877289

6
P2R reference P2R reference 70656
Maker reference Maker reference 877289

SCREW BTR (6X24) OEM PIAGGIO COMMON A LA RANGE-877289

More information

Quantity required : 6

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

7
P2R reference P2R reference 66579
Maker reference Maker reference 479515

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

More information

Quantity required : 6

NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R

8
P2R reference P2R reference 68853
Maker reference Maker reference 82952R

NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R

More information

Quantity required : 1

WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385

9
P2R reference P2R reference 69229
Maker reference Maker reference 842385

WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385

More information

Quantity required : 1

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

10
P2R reference P2R reference 63674
Maker reference Maker reference 000097

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

More information

Quantity required : 1
