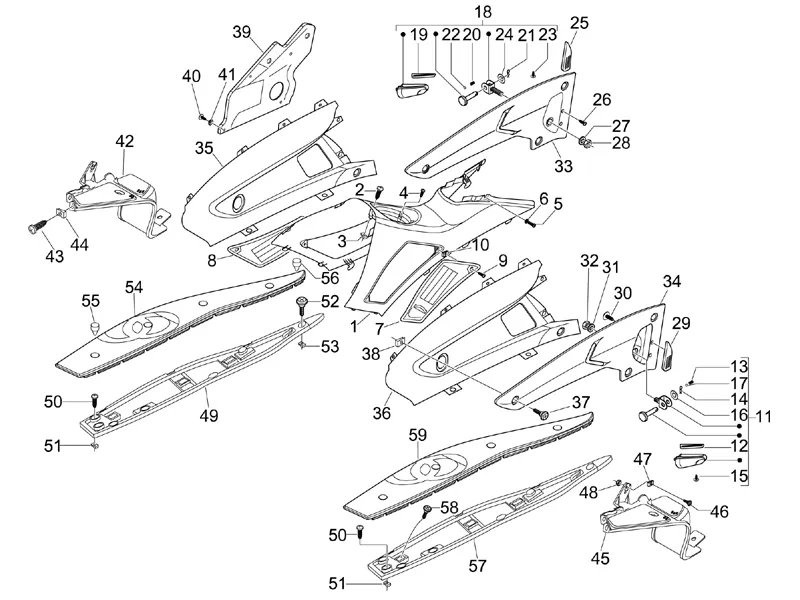

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/184/Nexus_300_ie_E3_2009-2011-097.png)
19 |
654132000C - REPOSE PIED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
20 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
20 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
21 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
22 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
22 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
23 |
975805 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
24 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/5/5/img/67655.jpg)
25 |
PROTECTOR RIGHT STEP FOOT OEM PIAGGIO 125-250-300-500 NEXUS GILERA-621370 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
26 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/2/img/66502.jpg)
27 |
WASHER SPRING (10. 5X21. 8X2) OEM PIAGGIO COMMON A LA RANGE-436698 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/7/img/65477.jpg)
28 |
NUT (10 EP 5. 9) OEM PIAGGIO COMMON A LA RANGE-020210 More informationQuantity required : 1 |
||||||
|
29 |
621369-GASKET PROTECTOR More informationQuantity required : 1 |
||||||
|
30 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
|
31 |
WASHER SPRING (10. 5X21. 8X2) OEM PIAGGIO COMMON A LA RANGE-436698 More informationQuantity required : 1 |
||||||
|
32 |
NUT (10 EP 5. 9) OEM PIAGGIO COMMON A LA RANGE-020210 More informationQuantity required : 1 |
||||||
|
33 |
975496000C - FLANC DR. More informationQuantity required : 1 |
||||||
|
34 |
975495000C - FLANC GAU. More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/1/img/68341.jpg)
35 |
SIDE PANEL LATERAL RIGHT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-656666000G More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/0/img/68340.jpg)
36 |
SIDE PANEL LATERAL LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-656665000G More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
58 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/9/img/68469.jpg)
59 |
MATTE OF FOOTREST LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-673984 More informationQuantity required : 1 |
