Vehicle Exploded View - GILERA NEXUS 300 ie E3 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

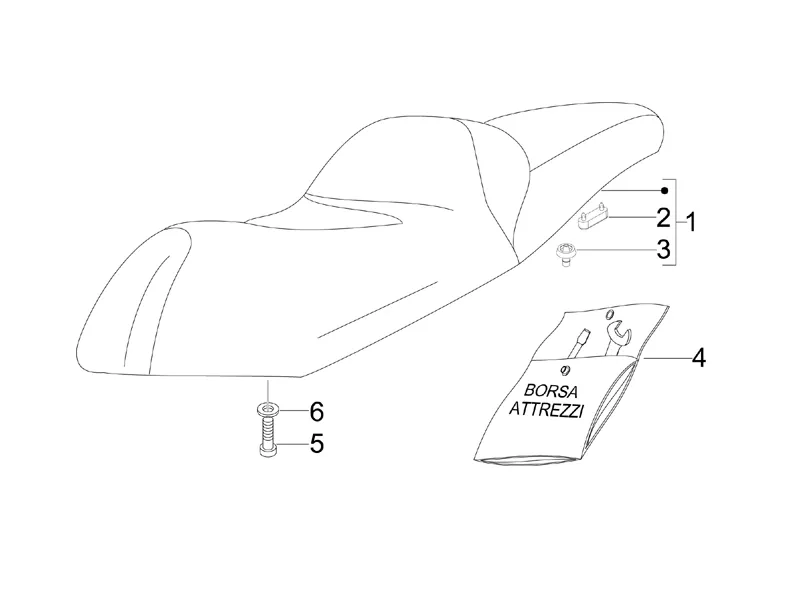

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/184/Nexus_300_ie_E3_2009-2011-130.png)
1 |
655251 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
656914 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
2 |
BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
3 |
BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492 More informationQuantity required : 4 |
||||||
|
4 |
648068-TROUSSE A OUTIL More informationQuantity required : 1 |
||||||
|
5 |
018555-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
