Vehicle Exploded View - GILERA NEXUS 250 E3 2006 GILERA

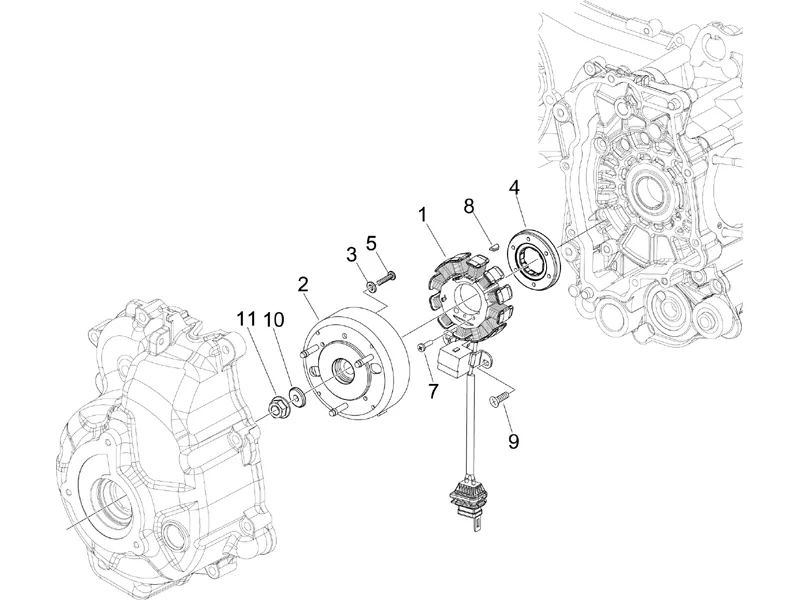

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
STATOR OEM PIAGGIO 250-300 VESPA GTS, BEVERLY, CARNABY, 250 X7, X8, X-EVO, 125 MP3I/GILERA 125-250-300 NEXUS/APRILIA 125 SR MAX, 250-300 ATLANTIC, SCARABEO, SPORT-CITY (ENGINE INJECTION)-58070R

1
P2R reference P2R reference 67182
Maker reference Maker reference 58070R

STATOR OEM PIAGGIO 250-300 VESPA GTS, BEVERLY, CARNABY, 250 X7, X8, X-EVO, 125 MP3I/GILERA 125-250-300 NEXUS/APRILIA 125 SR MAX, 250-300 ATLANTIC, SCARABEO, SPORT-CITY (ENGINE INJECTION)-58070R

More information

Quantity required : 1

639385 - ROTOR

2
P2R reference P2R reference 127684
Maker reference Maker reference 639385

639385 - ROTOR

More information

Quantity required : 1

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

3
P2R reference P2R reference 66579
Maker reference Maker reference 479515

WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515

More information

Quantity required : 6

WHEEL LIBRE DE STARTER MOTOR OEM PIAGGIO 125-250 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X-EVO/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, 125 SR-MAX, 250 SCARABEO-8477975

4
P2R reference P2R reference 69544
Maker reference Maker reference 8477975

WHEEL LIBRE DE STARTER MOTOR OEM PIAGGIO 125-250 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X-EVO/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, 125 SR-MAX, 250 SCARABEO-8477975

More information

Quantity required : 1

SCREW BTR (6X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-877288

5
P2R reference P2R reference 70655
Maker reference Maker reference 877288

SCREW BTR (6X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-877288

More information

Quantity required : 6

SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564

6
P2R reference P2R reference 67347
Maker reference Maker reference 597564

SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564

More information

Quantity required : 3

1A003111 - VIS M5X10

7
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 2

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

8
P2R reference P2R reference 63674
Maker reference Maker reference 000097

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

More information

Quantity required : 1

1A003111 - VIS M5X10

9
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 2

WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385

10
P2R reference P2R reference 69229
Maker reference Maker reference 842385

WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385

More information

Quantity required : 1

NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R

11
P2R reference P2R reference 68853
Maker reference Maker reference 82952R

NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R

More information

Quantity required : 1
