Vehicle Exploded View - GILERA NEXUS 250 E3 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

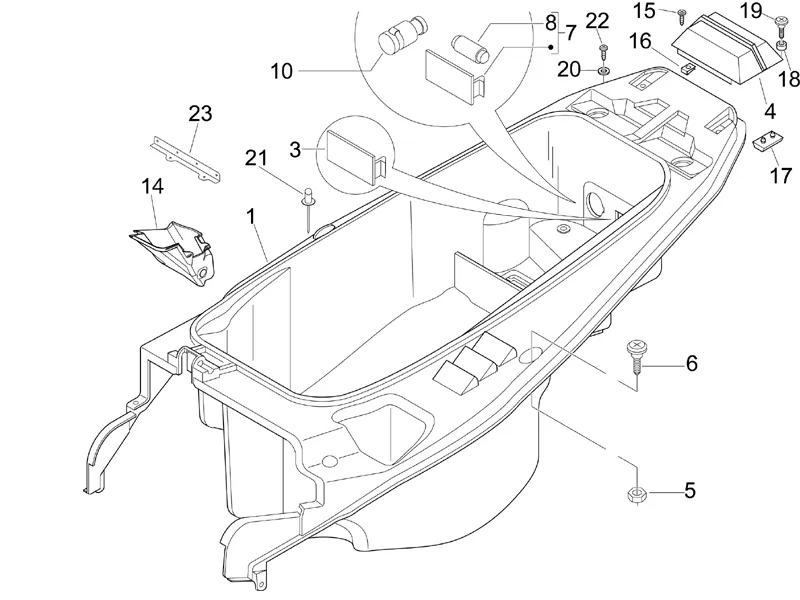

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/180/Nexus_250_E3_2006-124.png)
1 |
624370 - LOGEMENT CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/6/img/67116.jpg)
3 |
HATCH ACCES FUSIBLE OEM PIAGGIO COMMON A LA RANGE-575551 More informationQuantity required : 1 |
||||||
|
4 |
624509-COVER BATTERY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/3/img/65813.jpg)
5 |
NUT (M12X1. 25) OEM PIAGGIO COMMON A LA RANGE-191962 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/1/img/66261.jpg)
7 |
ECLAIRAGE/PLAFONNIER UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-293154 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
8 |
AMPOULE/LAMPE 12V 5W NAVETTE OEM PIAGGIO COMMON A LA RANGE-071633 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/5/img/66275.jpg)
10 |
PRISE DE EDGE OEM PIAGGIO COMMON A LA RANGE-294770 More informationQuantity required : 1 |
||||||
|
14 |
624371 - LOGEM.PORTE-OBJETS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
15 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
17 |
257301-BUFFER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
18 |
BUSH SPACER (7X10X10) OEM PIAGGIO COMMON A LA RANGE-257302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
19 |
SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
20 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 4 |
||||||
|
21 |
252099-RIVET More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
22 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
|
23 |
624824-PLATE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
