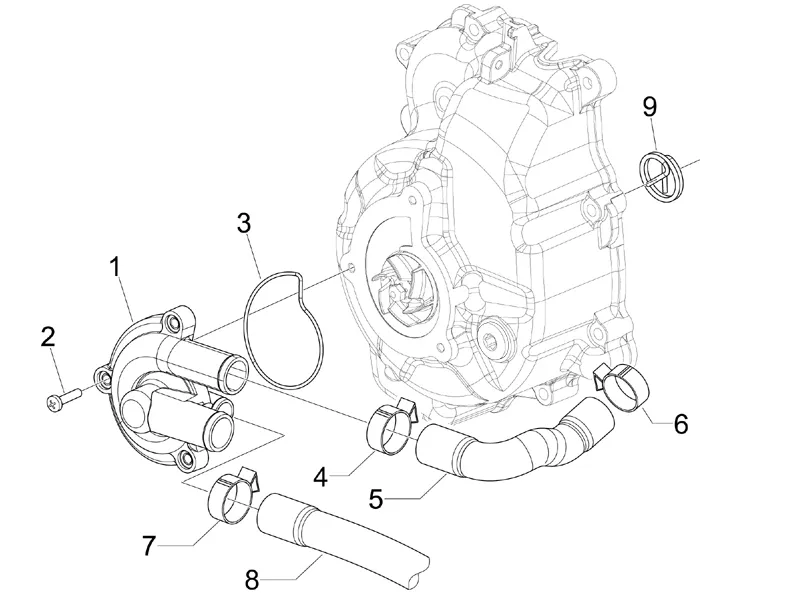

Vehicle Exploded View - GILERA NEXUS 250 E3 2006 GILERA

Moteur : 01.19 POMPE À EAU
Pompe à eau
Search
COVER WATER PUMP (3 DURITES) OEM PIAGGIO 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585)-877528

1
P2R reference P2R reference 70666
Maker reference Maker reference 877528

COVER WATER PUMP (3 DURITES) OEM PIAGGIO 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585)-877528

More information

Quantity required : 1

1A002998 - VIS M5X22

2
P2R reference P2R reference 139385
Maker reference Maker reference 1A002998

1A002998-SCREW M5X22

More information

Quantity required : 3

O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080

3
P2R reference P2R reference 66671
Maker reference Maker reference 485080

O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080

More information

Quantity required : 1

CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908

4
P2R reference P2R reference 72869
Maker reference Maker reference CM001908

CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908

More information

Quantity required : 2

HOSE/HOSE WATER PUMP CYLINDER OEM PIAGGIO 250-300 MP3, GTS, X7, X8, X9-878626

5
P2R reference P2R reference 70686
Maker reference Maker reference 878626

HOSE/HOSE WATER PUMP CYLINDER OEM PIAGGIO 250-300 MP3, GTS, X7, X8, X9-878626

More information

Quantity required : 1

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

6
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

More information

Quantity required : 1

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

7
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

More information

Quantity required : 1

HOSE COOLING (ENTRE PUMP ET CALORSTAT) OEM PIAGGIO 125-250-300 MAXI SCOOTER-878940

8
P2R reference P2R reference 70701
Maker reference Maker reference 878940

HOSE COOLING (ENTRE PUMP ET CALORSTAT) OEM PIAGGIO 125-250-300 MAXI SCOOTER-878940

More information

Quantity required : 1

SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390

9
P2R reference P2R reference 69231
Maker reference Maker reference 842390

SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390

More information

Quantity required : 1
