Vehicle Exploded View - GILERA NEXUS 125 ie E3 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

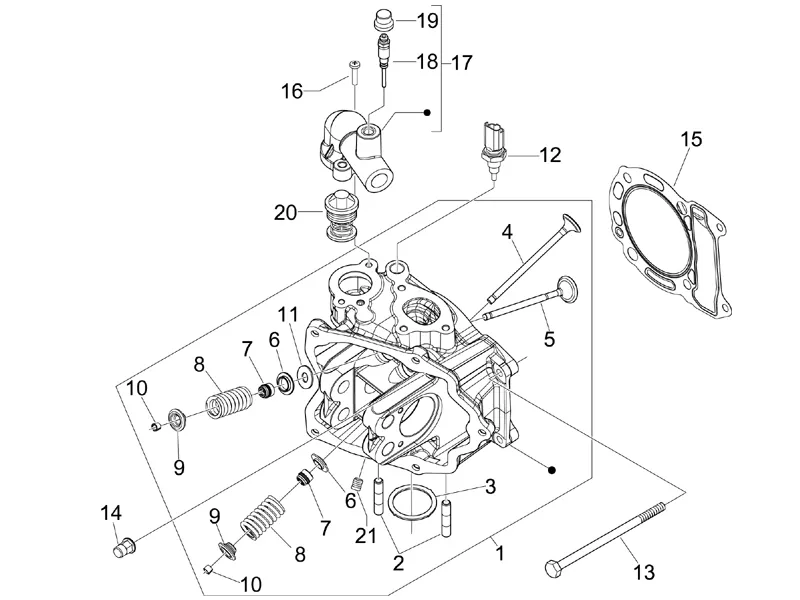

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/179/Nexus_125_ie_E3_2009-037.png)
1 |
CYLINDER HEAD COMPLETE (WITHOUT CAMSHAFT NI BASCULEURS) OEM PIAGGIO 125 X7, MP3, VESPA GTS/GILERA 125 NEXUS-8778016 More informationQuantity required : 1 |
||||||
|
1 |
CYLINDER HEAD COMPLETE (WITHOUT CAMSHAFT NI BASCULEURS) OEM PIAGGIO 125 X7, MP3, VESPA GTS/GILERA 125 NEXUS-8778016 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/8/img/66478.jpg)
2 |
STUD (M7) MOUNTING EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-435629 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/2/img/66602.jpg)
3 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-480853 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/4/img/149104.jpg)
4 |
VALVE D-ECHAPPEMENT (19. 2) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 > X8, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-873839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/7/img/146217.jpg)
5 |
VALVE INTAKE (22) OEM PIAGGIO 125-250-300 X7, BEVERLY, MP3, VESPA GTS, CARNABY, 125-250 X8, EVO/APRILIA 125-250-300 ATLANTIC, SR MAX/GILERA125-250 NEXUS, RUNNER (ENGINE LEADER)-873809 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
6 |
CUP LOWER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483711 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
7 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 4 |
||||||
|
8 |
875140-SPRING VALVE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/9/img/66649.jpg)
9 |
CUP UPPER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483914 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
10 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 1 |
||||||
|
11 |
CM159801-WASHER More informationQuantity required : 1 |
||||||
|
11 |
CM159802-WASHER More informationQuantity required : 1 |
||||||
|
11 |
CM159803-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
12 |
SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/2/img/66682.jpg)
13 |
SCREW TH (6X100) OEM PIAGGIO COMMON A LA RANGE-485603 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/8/img/66358.jpg)
14 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-411296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/9/img/70619.jpg)
15 |
CYLINDER HEAD GASKET 0. 3MM Ø57 OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-876625 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
16 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/2/img/70572.jpg)
17 |
FITTING/HOUSING DE CALORSTAT OEM PIAGGIO 125 MP3, BEVERLY, VESPA GTS, X7 INJECTION/GILERA 125 NEXUS INJECTION/APRILIA 125 SR-MAX INJECTION-875106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
18 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
19 |
063435-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/0/img/68850.jpg)
20 |
CALORSTAT OEM PIAGGIO 125 MP3, BEVERLY, VESPA GTS, X7 INJECTION/GILERA 125 NEXUS INJECTION/APRILIA 125 SR-MAX INJECTION-82951R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
21 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 0 |
