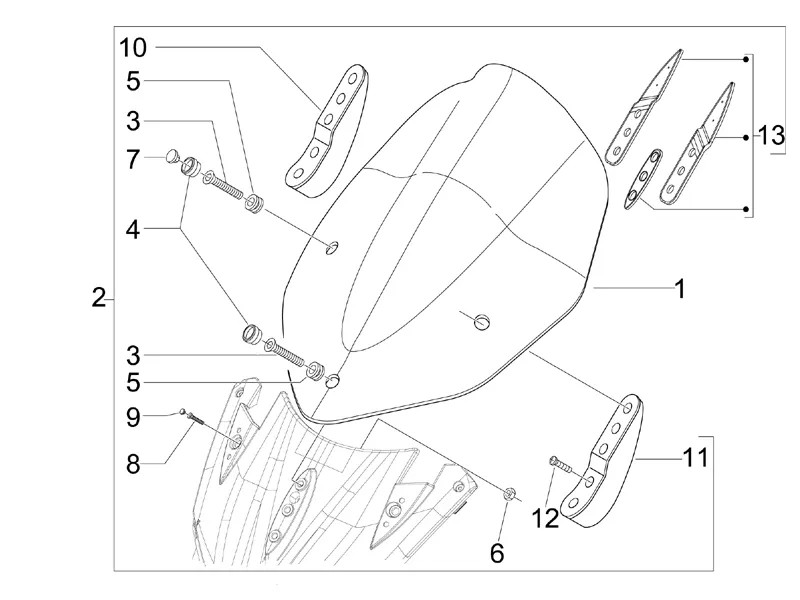

Vehicle Exploded View - GILERA NEXUS 125 ie E3 2009 GILERA

Châssis - parties plastiques - carrosseries : 02.27 PARE-BRISE - GLACES
Pare-brise - Glaces
Search
6565275 - PARE-BRIS

1
P2R reference P2R reference 139421
Maker reference Maker reference 6565275

6565275 - PARE-BRIS

More information

Quantity required : 1

975760000G - KIT FIXATION PAREBRISE

2
P2R reference P2R reference 71057
Maker reference Maker reference 975760000G

975760000G - KIT FIXATION PAREBRISE

More information

Quantity required : 1

975856 - BOULON

3
P2R reference P2R reference 71064
Maker reference Maker reference 975856

975856 - BOULON

More information

Quantity required : 3

621940 - COUVERCLE

4
P2R reference P2R reference 67664
Maker reference Maker reference 621940

621940 - COUVERCLE

More information

Quantity required : 3

RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173

5
P2R reference P2R reference 66993
Maker reference Maker reference 560173

RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173

More information

Quantity required : 3

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

6
P2R reference P2R reference 65474
Maker reference Maker reference 020206

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

More information

Quantity required : 2

CAP DE WINDSCREEN OEM PIAGGIO 125-300-400-500 MP3/GILERA 125-250-300-500 NEXUS 2018 <-577237

7
P2R reference P2R reference 67152
Maker reference Maker reference 577237

CAP DE WINDSCREEN OEM PIAGGIO 125-300-400-500 MP3/GILERA 125-250-300-500 NEXUS 2018 <-577237

More information

Quantity required : 4

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

8
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2

D9004468231 - COLLIER

9
P2R reference P2R reference 109870
Maker reference Maker reference D9004468231

D9004468231 CLAMP

More information

Quantity required : 2

975760000G - KIT FIXATION PAREBRISE

10
P2R reference P2R reference 71057
Maker reference Maker reference 975760000G

975760000G - KIT FIXATION PAREBRISE

More information

Quantity required : 1

975760000G - KIT FIXATION PAREBRISE

11
P2R reference P2R reference 71057
Maker reference Maker reference 975760000G

975760000G - KIT FIXATION PAREBRISE

More information

Quantity required : 1

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

12
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 4

975750 - KIT JOINTS

13
P2R reference P2R reference 71056
Maker reference Maker reference 975750

975750-KIT JOINTS *

More information

Quantity required : 1
