Vehicle Exploded View - GILERA NEXUS 125 ie E3 2009 GILERA

Moteur : 01.02 MOTEUR COMPLET

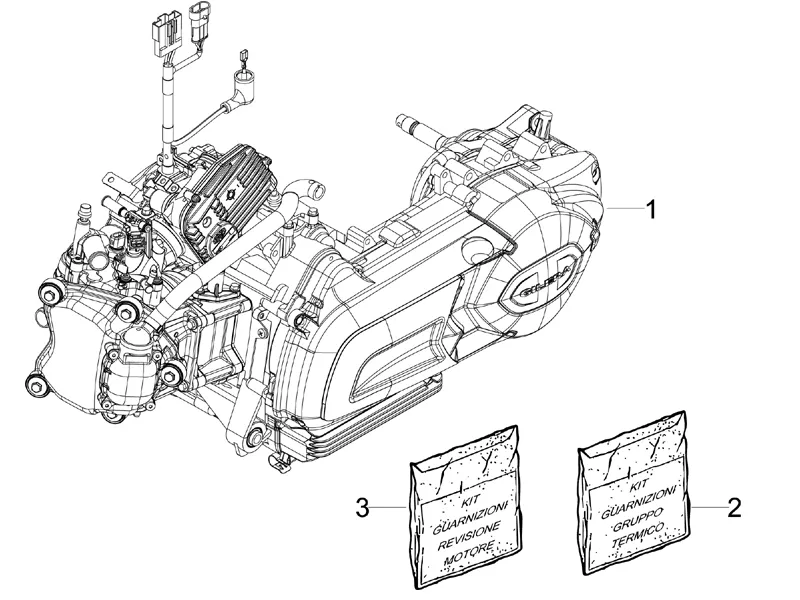

Moteur complet
Search
"PIAGGIO GENUINE ENGINE" GILERA 125 NEXUS 4 stroke/4 valves E3 I.E -CM1581185-

1
P2R reference P2R reference 127206
Maker reference Maker reference CM1581185

"PIAGGIO GENUINE ENGINE" GILERA 125 NEXUS 4 STROKE/4 VALVES E3 I.E -CM1581185-

More information

Quantity required : 1

SET OF GASKETS HAUT ENGINE MAXI SCOOTER OEM PIAGGIO 125 MP3, X7, BEVERLY, X10, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 SR MAX (ENGINE INJECTION)-497553

2
P2R reference P2R reference 66934
Maker reference Maker reference 497553

SET OF GASKETS HAUT ENGINE MAXI SCOOTER OEM PIAGGIO 125 MP3, X7, BEVERLY, X10, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 SR MAX (ENGINE INJECTION)-497553

More information

Quantity required : 1

SET OF GASKETS ENGINE MAXI SCOOTER OEM PIAGGIO 125 MP3 IE 2010 >, X10 2012 >, YOURBAN 2012 >, X7 2009 >, BEVERLY 2010 >, VESPA GTS 2009 >/GILERA 125 NEXUS 2008 >/APRILIA 125 SR-MAX 2011 >-497554

3
P2R reference P2R reference 66935
Maker reference Maker reference 497554

SET OF GASKETS ENGINE MAXI SCOOTER OEM PIAGGIO 125 MP3 IE 2010 >, X10 2012 >, YOURBAN 2012 >, X7 2009 >, BEVERLY 2010 >, VESPA GTS 2009 >/GILERA 125 NEXUS 2008 >/APRILIA 125 SR-MAX 2011 >-497554

More information

Quantity required : 1
