Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Club 750 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

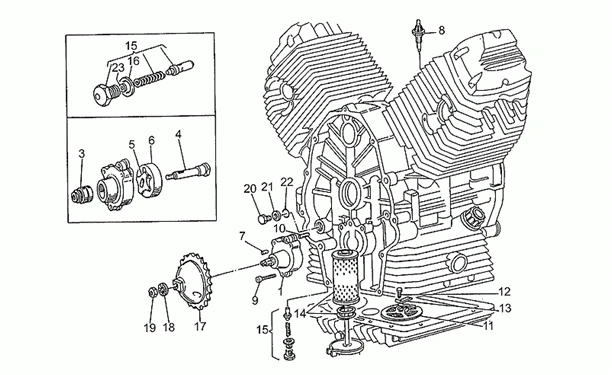

Moteur : 34.43 POMPE À HUILE COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/504/Nevada_Club_750_1998-2001_34.43.PNG)
1 |
GU19146422-PUMP OIL More informationQuantity required : 1 |
||||||
|
3 |
GU92252210-BEARING A ROULEAUX More informationQuantity required : 1 |
||||||
|
4 |
GU20147810-SHAFT ENGR. PUMP More informationQuantity required : 1 |
||||||
|
5 |
GU20148410-ROTOR More informationQuantity required : 1 |
||||||
|
6 |
GU20148610-ROTOR More informationQuantity required : 1 |
||||||
|
7 |
GU92296723-ROLLER More informationQuantity required : 1 |
||||||
|
8 |
GU31999581 - DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
9 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335 More informationQuantity required : 3 |
||||||
|
10 |
GU19018920-GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/1/img/129541.jpg)
11 |
OIL FILTER OEM MOTO GUZZI BREVA 2003 > 2009, CALIFORNIA, ELDORADO, GRISO 2015 > 2018-GU19152200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
12 |
SCREW TH (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98084314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/0/img/132760.jpg)
13 |
PLATE MAINTIEN CREPINE OIL FILTER OEM MOTO GUZZI-GU95187006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/2/img/134492.jpg)
14 |
OIL FILTER OEM PIAGGIO MOTO-GUZZI 750 V7, V9, V85, NEVADA, 750 BREVA, STRADA, V50-2A000633 More informationQuantity required : 1 |
||||||
|
15 |
SOUPAPE REGUL.PRESS. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
16 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 1 |
||||||
|
17 |
GU20147710-SPROCKET OF PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
18 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 1 |
||||||
|
19 |
GU92602510-NUT More informationQuantity required : 1 |
||||||
|
20 |
GU31016050-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/8/img/129418.jpg)
21 |
WASHER ETANCHEITE (14. 25X22X1) OEM PIAGGIO COMMON A LA RANGE-GU18161150 More informationQuantity required : 1 |
||||||
|
22 |
GU90706111-O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
23 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 1 |
