Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Club 750 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

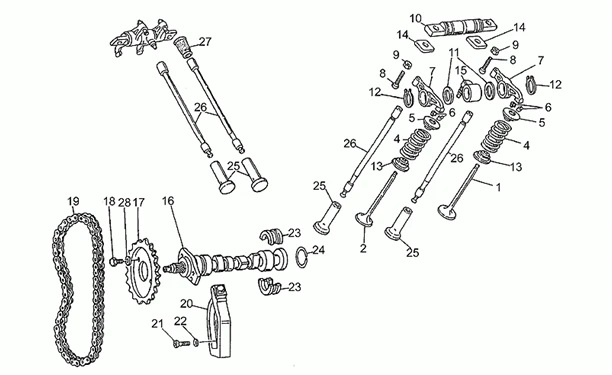

Moteur : 34.38 DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/504/Nevada_Club_750_1998-2001_34.38.PNG)
1 |
GU19036082-VALVE D AMMISSION More informationQuantity required : 2 |
||||||
|
2 |
GU19036183-VALVE D ECHAPPEMEN More informationQuantity required : 2 |
||||||
|
4 |
GU27037521-SPRING More informationQuantity required : 4 |
||||||
|
5 |
GU31038015-COUPELLE UPPER More informationQuantity required : 4 |
||||||
|
6 |
GU61038100-HALF-CLAVETTE More informationQuantity required : 8 |
||||||
|
7 |
82985R-BILANCIERE ASPIRAZIONE E SCARICO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/0/img/129470.jpg)
8 |
SCREW OF REGLAGE DE CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI 2 SOUPAPES-GU19034000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/7/2/img/132472.jpg)
9 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-GU92602406 More informationQuantity required : 4 |
||||||
|
10 |
GU19032080-SPINDLE CULBUTEUR More informationQuantity required : 2 |
||||||
|
11 |
GU19032380-WASHER D APPUI More informationQuantity required : 4 |
||||||
|
12 |
GU90271018-BUSH SEEGER More informationQuantity required : 4 |
||||||
|
13 |
GU31037015-COUPELLE INFERIEURE More informationQuantity required : 4 |
||||||
|
14 |
GU19032980-CALE More informationQuantity required : 4 |
||||||
|
15 |
2B000579-MANICOTTO MANDATA OIL AI BILANCIERI More informationQuantity required : 2 |
||||||
|
16 |
ARBRE A CAMES |
||||||
|
16 |
Arbre a cames |
||||||
|
17 |
GU19054521 - ENGRENAGE DISTRIBUTION More informationQuantity required : 1 |
||||||
|
18 |
GU61054900-BOLT More informationQuantity required : 2 |
||||||
|
19 |
GU19058021-CHAIN DE TIMING More informationQuantity required : 1 |
||||||
|
20 |
GU19058220 - TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
|
21 |
GU98822316 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/0/img/132750.jpg)
22 |
WASHER SPRING D6 OEM PIAGGIO COMMON A LA RANGE-GU95129115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/9/img/129479.jpg)
23 |
HALF-PALLIER SHAFT A CAME OEM PIAGGIO MOTO-GUZZI 750 NEVADA, STRADA, V7, BREVA, V35, V60, V65-GU19055700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/4/img/132154.jpg)
24 |
O-RING (27X1) OEM MOTO GUZZI COMMON A LA RANGE-GU90353029 More informationQuantity required : 1 |
||||||
|
25 |
GU19045861-POUSSOIR More informationQuantity required : 4 |
||||||
|
26 |
GU31045015-CULBUTEUR ROD More informationQuantity required : 4 |
||||||
|
27 |
GU27045420-CAPUCHON More informationQuantity required : 4 |
||||||
|
28 |
GU23217800-WASHER DE SERETE More informationQuantity required : 2 |
