Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Club 750 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

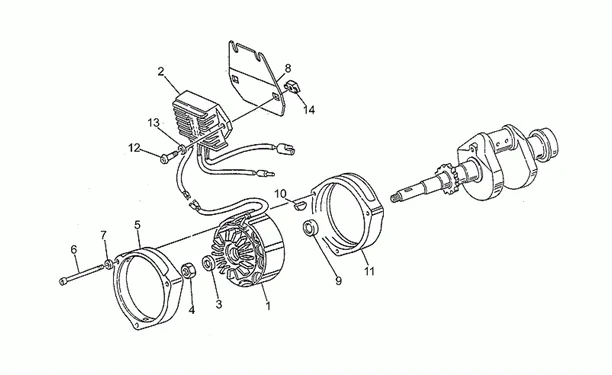

Moteur : 34.32 ALTERNATEUR DUCATI
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/504/Nevada_Club_750_1998-2001_34.32.PNG)
1 |
GU30712460 - GENERATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/7/3/img/131873.jpg)
2 |
REGULATEUR DE TENSION OEM PIAGGIO MOTO-GUZZI 750 NEVADA 1998 > 2003, 1000 QUOTA 1992 > 2002, V10 1997 > 1999, V11 1999 > 2002, 1100 CALIFORNIA 1994 > 2002, SPORT 1994 > 1999-GU37703805 More informationQuantity required : 1 |
||||||
|
3 |
GU30714201 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
GU92606516-NUT More informationQuantity required : 1 |
||||||
|
5 |
GU29711460-CALOTTE AV. More informationQuantity required : 1 |
||||||
|
6 |
GU98620265-SCREW More informationQuantity required : 3 |
||||||
|
7 |
GU29217960-WASHER 5, 9X3X0, 8 More informationQuantity required : 3 |
||||||
|
8 |
GU29704060-PLATE BRACKET More informationQuantity required : 1 |
||||||
|
9 |
GU31712365-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/4/img/132374.jpg)
10 |
CLAVETTE OEM MOTO GUZZI COMMON A LA RANGE-GU91600450 More informationQuantity required : 1 |
||||||
|
11 |
GU29711960-CALOTTE REAR CHROMEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
12 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 2 |
||||||
|
13 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
|
14 |
GU92660601-NUT EN CAGE More informationQuantity required : 2 |
All the exploded views of this vehicle
-
