Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

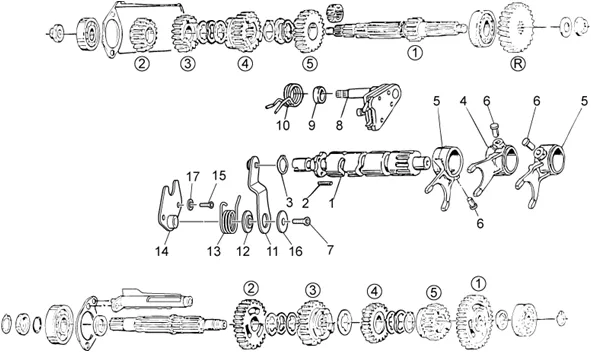

Moteur : 34.45 SELECTEUR BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_34.45.PNG)
1 |
GU32234410-DESMODROMIQUE More informationQuantity required : 1 |
||||||
|
2 |
GU19234600-ROD More informationQuantity required : 4 |
||||||
|
3 |
GU90274026-ANNEAU ELASTIC More informationQuantity required : 1 |
||||||
|
4 |
GU32231210-FOURCHETTE AP More informationQuantity required : 1 |
||||||
|
5 |
GU32231010 - FOURCHETTE AS More informationQuantity required : 2 |
||||||
|
6 |
GU32233010-ROLLER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
7 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
8 |
GU32236210 - PRESELECTEUR COMPLET More informationQuantity required : 1 |
||||||
|
9 |
GU20208520-SPACER More informationQuantity required : 1 |
||||||
|
10 |
GU32238210-SPRING More informationQuantity required : 1 |
||||||
|
11 |
GU32234710-LEVER More informationQuantity required : 1 |
||||||
|
12 |
GU32234810-WASHER More informationQuantity required : 1 |
||||||
|
13 |
GU32234110-SPRING More informationQuantity required : 1 |
||||||
|
14 |
GU32235710 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/3/img/73563.jpg)
15 |
SCREW BTR HEAD FRAISEE (6X18) OEM PIAGGIO COMMON A LA RANGE-GU98257618 More informationQuantity required : 2 |
||||||
|
16 |
GU32234910-WASHER 6, 4X20X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
17 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
