Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

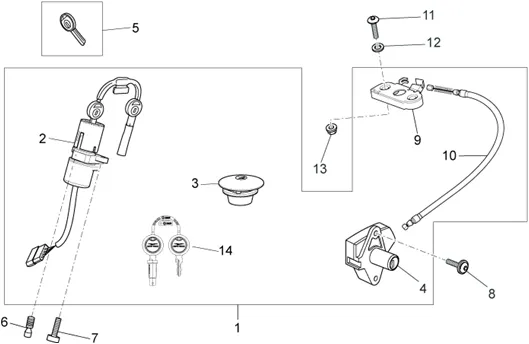

Chassis : 33.33 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_33.33.PNG)
1 |
GU32736860 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/7/1/img/131771.jpg)
2 |
IGNITION SWITCH/LOCK OEM PIAGGIO MOTO-GUZZI 750 V7, BREVA, NEVADA 2016 <-GU32782510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/5/4/img/99554.jpg)
3 |
CAP DE TANK OEM PIAGGIO MOTO-GUZZI 940 BELAGIO 2007 >, 1100 CALIFORNIA 1999 >, 750 NEVADA 1998 >, 750 V7 2009 >-887874 More informationQuantity required : 1 |
||||||
|
4 |
GU02468100-SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
5 |
GU32735510-CLE PAS CANTEE UNPAINTED-COQUE GO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
6 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
7 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
|
8 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98210616 More informationQuantity required : 2 |
||||||
|
9 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
|
10 |
GU32462160-TRANSMISSION DECROCHEMENT SELL More informationQuantity required : 1 |
||||||
|
11 |
GU98350330-SCREW M6X30 More informationQuantity required : 2 |
||||||
|
12 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
14 |
2D000006-SERRATURA CAP CON CHIAVI More informationQuantity required : 1 |
