Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

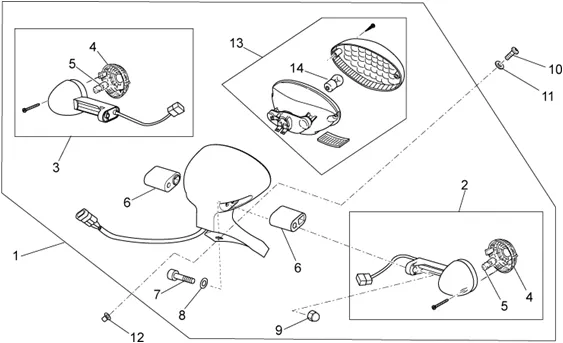

Chassis : 33.29 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_33.29.PNG)
1 |
978950 - FEU ARRIÈRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/4/7/img/131747.jpg)
2 |
FRONT RIGHT INDICATOR/REAR LEFT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU32750660 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/6/5/img/129065.jpg)
3 |
FRONT LEFT INDICATOR/REAR RIGHT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU06751600 More informationQuantity required : 1 |
||||||
|
4 |
GU32753760 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
|
6 |
GU32753410 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
7 |
GU98370655-SCREW M6X55 More informationQuantity required : 1 |
||||||
|
8 |
GU95021206-WASHER More informationQuantity required : 1 |
||||||
|
9 |
GU92787006-NUT More informationQuantity required : 2 |
||||||
|
10 |
GU98350215 - VIS More informationQuantity required : 1 |
||||||
|
11 |
GU30577800-WASHER NYLON 5, 5X12X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/2/img/132592.jpg)
12 |
BUSH ANTI VIBRATION (M5) OEM PIAGGIO COMMON A LA RANGE-GU93231605 More informationQuantity required : 1 |
||||||
|
13 |
GU03740930-LAMP REAR More informationQuantity required : 1 |
||||||
|
14 |
GU93450224-LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
