Vehicle Exploded View - APRILIA MX 50 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

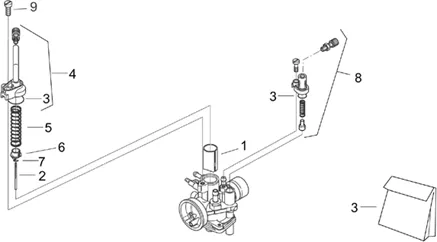

Moteur : 29.45 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/691/MX_50_2004_29.45.PNG)
1 |
AP8206899-VALVE THROTTLE More informationQuantity required : 1 |
||||||
|
2 |
AIGUILLE DE CARBURETTOR A13 OEM PIAGGIO COMMON A LA RANGE-AP8276033 More informationQuantity required : 1 |
||||||
|
3 |
AP8206886 - SACHET JOINTS More informationQuantity required : 1 |
||||||
|
4 |
AP8206983-KIT COUV. CHAMBRE MELANGE More informationQuantity required : 1 |
||||||
|
5 |
AP8206908 - RESS.RAPP.SOUP.GAZ More informationQuantity required : 1 |
||||||
|
6 |
Arrêt point.conique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
7 |
CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/5/6/img/56056.jpg)
8 |
MECHANICAL CHOKE "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, RS, SR, RALLY -AP8206893- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
9 |
SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865 More informationQuantity required : 1 |
