Vehicle Exploded View - APRILIA MX 50 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

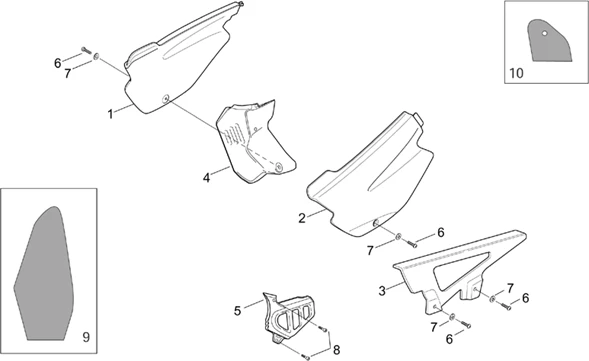

Chassis : 28.09 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/691/MX_50_2004_28.09.PNG)
1 |
AP8268225 - FIANCATINA DX More informationQuantity required : 1 |
||||||
|
1 |
AP8268230 - FIANCATINA DX NERA More informationQuantity required : 1 |
||||||
|
2 |
AP8268226 - FIANCATINA SX More informationQuantity required : 1 |
||||||
|
2 |
AP8268231 - FIANCATINA SX NERA More informationQuantity required : 1 |
||||||
|
3 |
AP8258655-CASING CHA? NE More informationQuantity required : 1 |
||||||
|
4 |
Rallonge cache lat.D; |
||||||
|
5 |
Carter pignon, gris |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
7 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
8 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150280 More informationQuantity required : 2 |
||||||
|
9 |
AP8217038 - PANN.ANTICH.; More informationQuantity required : 1 |
||||||
|
10 |
AP8217039 - PANN.ANTICH.; More informationQuantity required : 1 |
