Vehicle Exploded View - APRILIA MX 50 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

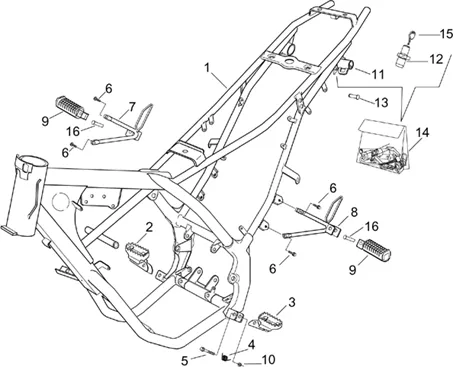

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/691/MX_50_2004_28.01.PNG)
1 |
Châssis, noir |
||||||
|
2 |
AP8135431 - R-PIED PILOTE D; More informationQuantity required : 1 |
||||||
|
3 |
R-pied pilote G; |
||||||
|
4 |
AP8101317-RES. RAP. PLAN. PIL. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
5 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
6 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 4 |
||||||
|
7 |
AP8146072 - SUPPORT R-P. D PASS.; More informationQuantity required : 1 |
||||||
|
8 |
Support r-p. G pass.; |
||||||
|
9 |
R-pied pass.-paire |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 3 |
||||||
|
11 |
AP8104808 - SERRATURA CASCO More informationQuantity required : 1 |
||||||
|
12 |
Bloc démarreur-bloc; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
13 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/6/9/img/55469.jpg)
14 |
LOCK KIT- "PIAGGIO GENUINE PART" APRILIA 50 RX 1995>2003, MX 2004> -AP8202348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
15 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
16 |
Pivot repose-pieds passager |
