Vehicle Exploded View - APRILIA MX 50 2002-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

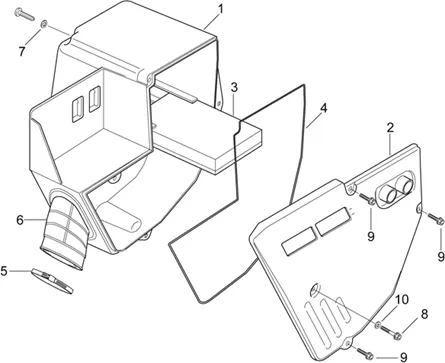

Chassis : 28.20 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/686/MX_50_2002-2003_28.20.PNG)
1 |
AP8230645 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
2 |
Couvercle corps filtre; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/2/img/72132.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 50 RX, MX, PEGASO 1992>2004- -AP8201429 More informationQuantity required : 1 |
||||||
|
4 |
890513-GASKET D. 4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
5 |
CLAMP SLEEVE AIR (42/50) OEM PIAGGIO COMMON A LA RANGE-AP8201799 More informationQuantity required : 1 |
||||||
|
6 |
Manchon d'aspiration |
||||||
|
6 |
AP8220642 - MANICOTTO CARBURATORE FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
7 |
WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
9 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
10 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 1 |
