Vehicle Exploded View - APRILIA MX 50 2002-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

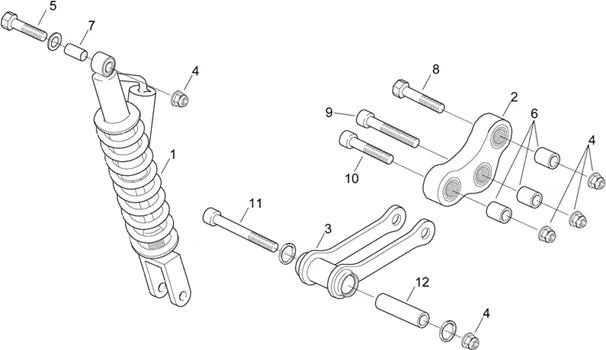

Chassis : 28.06 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/686/MX_50_2002-2003_28.06.PNG)
1 |
Amortisseur |
||||||
|
2 |
AP8232497 - DOUBLE BIELLETTE; More informationQuantity required : 1 |
||||||
|
3 |
AP8232498 - BIELLET SIMPLE, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 5 |
||||||
|
5 |
AP8150227 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/1/img/45821.jpg)
6 |
CAGE A AIGUILLE DE BIELETTE SUSPENSION REAR OEM PIAGGIO APRILIA 50 MX, SX, RX, 125 RS, TUAREG, TUONO, PEGASO-AP8110063 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
7 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
|
8 |
AP8150323-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/0/img/71860.jpg)
10 |
SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-AP8150329 More informationQuantity required : 1 |
||||||
|
11 |
AP8150287-SCREW More informationQuantity required : 1 |
||||||
|
12 |
AP8221001 - ENTRETOISE More informationQuantity required : 1 |
