Vehicle Exploded View - APRILIA MX 50 2002-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

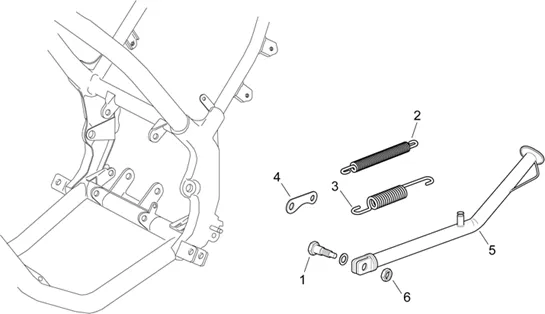

Chassis : 28.03 BÉQUILLE SUPERMOTARD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/686/MX_50_2002-2003_28.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/7/5/img/57075.jpg)
1 |
SCREW - STAND FASTENING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -AP8221343 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/4/1/img/46841.jpg)
2 |
SPRING DE STAND INTRIEUR SIDE OEM APRILIA 50 RX 1995 > 2004-AP8121482 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
3 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 1 |
||||||
4 |
AP8134266-PLATE RETOUR STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/1/5/5/img/58155.jpg)
5 |
SIDE STAND OEM PIAGGIO APRILIA 50 MX, RX, SX-AP8235135 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
6 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
