Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

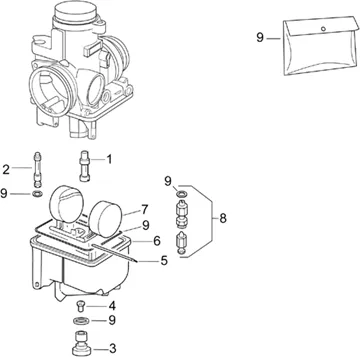

Moteur : 29.19 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_29.19.PNG)
1 |
AP8106696-GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/1/8/img/45618.jpg)
1 |
AP8106724-GICLEUR More informationQuantity required : 1 |
||||||
|
2 |
AP8106780 - JET DEMARRAGE More informationQuantity required : 1 |
||||||
|
3 |
AP8106793 - BOUCHON FIX.BAC More informationQuantity required : 1 |
||||||
|
4 |
AP8106087 - GETTO MASSIMO 104 More informationQuantity required : 1 |
||||||
|
4 |
AP8106964-GETTO MASSIMO 122 More informationQuantity required : 1 |
||||||
|
5 |
AP8106792-SPINDLE FLOTTEUR More informationQuantity required : 1 |
||||||
|
6 |
AP8106791 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/9/img/71249.jpg)
7 |
CARBURETTOR FLOAT GR. 9, 5 OEM PIAGGIO APRILIA 125 RS 1999 > 2010/MOTO-GUZZI V35, V50, V65, V75, TARGA, STRADA, NEVADA-AP8106782 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/3/img/66333.jpg)
8 |
POINTEAU OEM PIAGGIO APRILIA 125 RS, TUONO, MX/MOTO-GUZZI 1000 CALIFORNIA, 1000 GT-318604 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/4/7/img/45647.jpg)
9 |
POCHETTE/KIT JOINTS OF CARBURETTOR OEM PIAGGIO APRILIA 125 RS, TUONO, MX-AP8106796 More informationQuantity required : 1 |
