Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

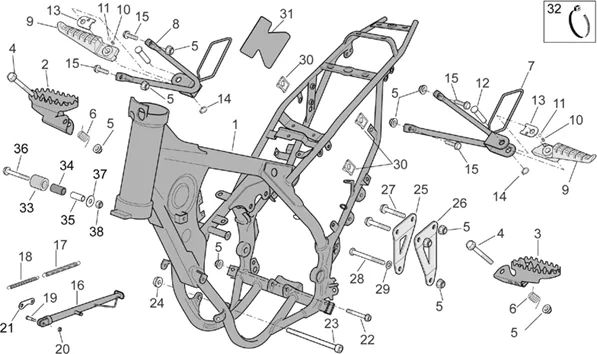

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.01.PNG)
1 |
AP8146816 - TELAIO V.CON CATAFORESI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/1/3/5/img/50135.jpg)
2 |
FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50-125 RX, SX-AP8146819 More informationQuantity required : 1 |
||||||
|
3 |
FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RX, SX-AP8146821 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
4 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
5 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 11 |
||||||
|
6 |
AP8101317-RES. RAP. PLAN. PIL. More informationQuantity required : 2 |
||||||
|
7 |
AP8146859 - SUPPORTO PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
8 |
AP8146860-BRACKET PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
9 |
PASSENGER FOOTREST (PAIR) "PIAGGIO GENUINE PART" 50-125 RS, TUONO, MX, FUTURA -AP8132812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
10 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
11 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/0/img/71710.jpg)
12 |
PIVOT OF REST FOOT (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8134829 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/9/1/img/48691.jpg)
13 |
AP8132720 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
14 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
15 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 4 |
||||||
|
16 |
AP8146823 - CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
17 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/4/1/img/46841.jpg)
18 |
SPRING DE STAND INTRIEUR SIDE OEM APRILIA 50 RX 1995 > 2004-AP8121482 More informationQuantity required : 1 |
||||||
|
19 |
AP8161006-SCREW CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
20 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
|
21 |
AP8134266-PLATE RETOUR STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
22 |
SCREW FLANGE TH (8X60) OEM PIAGGIO COMMON A LA RANGE-AP8152293 More informationQuantity required : 1 |
||||||
|
23 |
AP8150438-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
24 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
25 |
AP8135715 - PLAQUE CYLINDER-CHASSIS D; More informationQuantity required : 1 |
||||||
|
26 |
AP8135716 - PLAQUE CYLINDER-CHASSIS G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
27 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 2 |
||||||
|
28 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
29 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/8/img/45128.JPG)
30 |
NUT SHEET METAL DZUS/QUART DE TOUR OEM PIAGGIO COMMON A LAGAMME-AP8101985 More informationQuantity required : 3 |
||||||
|
31 |
Protection réservoir |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
32 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
||||||
|
33 |
AP8101704 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/5/img/46725.jpg)
34 |
AP8121092 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
35 |
SPACER OEM APRILIA COMMON A LA RANGE-AP8101108 More informationQuantity required : 1 |
||||||
|
36 |
SCREW FLANGE TH (8X60) OEM PIAGGIO COMMON A LA RANGE-AP8152293 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
37 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
38 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
