Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

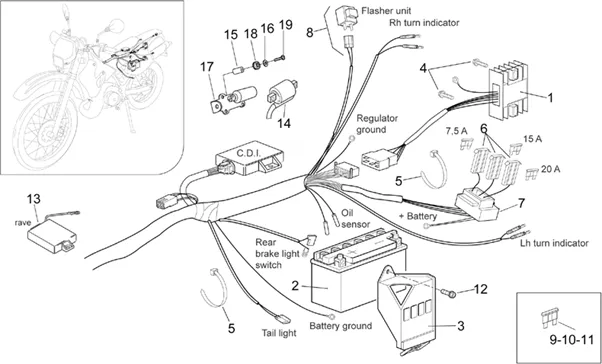

Chassis : 28.27 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/4/img/45894.jpg)
1 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, MX, CLASSIC, 650 PEGASO, 125 LEONARDO ROTAX, 125 SCARABEO ROTAX -AP8112906- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
2 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/6/0/img/48660.jpg)
3 |
COVER BATTERY OEM PIAGGIO APRILIA 125 SX, RX 1998 <-AP8131676 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 6 |
||||||
6 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 3 |
||||||
|
7 |
AP8112942 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
|
8 |
AP8127286 - CLIGNOTEMENT; More informationQuantity required : 1 |
||||||
|
9 |
CM225607-FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
10 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 1 |
||||||
|
11 |
495357 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
|
13 |
AP8112659 - BO?TIER COMMANDE RAVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/6/3/img/45863.jpg)
14 |
ENGINE DE CONTROL VALVE EXHAUST OEM PIAGGIO APRILIA 125 RS, RX, SX, PEGASO, CLASSIC-AP8112567 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/3/img/71483.jpg)
15 |
AP8121736-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
16 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 6 |
||||||
|
17 |
AP8132869 - PLAQ.SUP. SOLENO?DE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
18 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
