Vehicle Exploded View - PIAGGIO MP3 400 ie MIC 2008-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

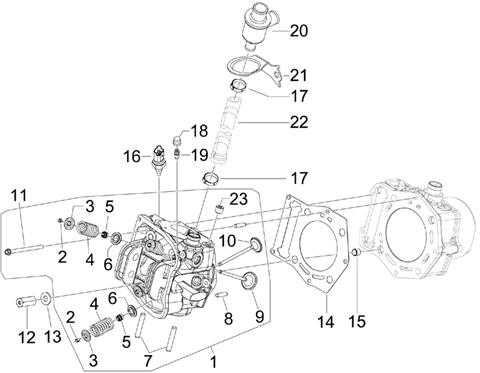

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/3/5/img/92835.jpg)
1 |
CYLINDER HEAD (WITHOUT CAMSHAFT/ROCKERS) "PIAGGIO GENUINE PART" PIAGGIO 400 MP3 2007>, BEVERLY 2008>2009 -82986R1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
2 |
VALVE HALF CONE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER + MAXISCOOTER -285846 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/2/img/68752.jpg)
3 |
828396 - RONDELLE D'AR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/3/img/68583.jpg)
4 |
VALVE SPRING "PIAGGIO GENUINE PART" MOTEUR 400-500 MAXISCOOTER -826103- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
5 |
VALVE GASKET RING "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -436438 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/2/img/68592.jpg)
6 |
826256 - RONDELLE D'AR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
7 |
STUD BOLT (M8X3X46) "PIAGGIO GENUINE PART" MUILTI-PURPOSE - COMMON TO THE RANGE -1A003632R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/2/img/70702.jpg)
8 |
SCREW - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -878991 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/7/img/68747.jpg)
9 |
INLET VALVE "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME MAXISCOOTER 400-500 -828322 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/6/img/68746.jpg)
10 |
EXHAUST VALVE "PIAGGIO GENUINE PART" FOR SCOOTERS 400-500CC -828321 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/2/img/72722.jpg)
11 |
B016776 - VIS M6X90 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/8/img/69018.jpg)
12 |
832783 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
13 |
178790 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/7/img/69337.jpg)
14 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" 400 BEVERLY, X8, X-EVO, MP3/APRILIA 400 ATLANTIC -844957 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
15 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
16 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER/GILERA 50 SMT, RCR 2018> -640485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
17 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001915 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
18 |
063435 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
19 |
BRAKE DRAIN SCREW -430045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/3/img/69563.jpg)
20 |
THERMOSTAT "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -848140 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/3/img/69133.jpg)
21 |
840062 - CUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/7/img/69167.jpg)
22 |
COOLANT PIPE "PIAGGIO GENUINE PART" 400 X-EVO, MP3, X9, X10/GILERA 500 NEXUS, FUOCO -840826 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
23 |
842360 - BOUCHON More informationQuantity required : 1 |
