Vehicle Exploded View - PIAGGIO MP3 400 ie MIC 2008-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

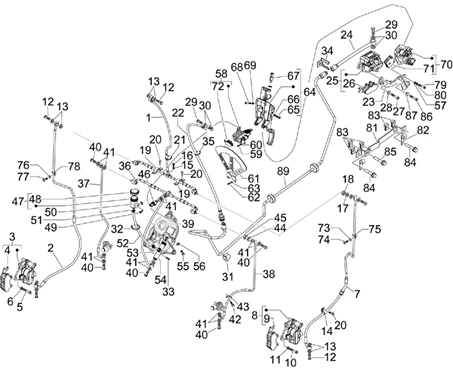

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_05.01.PNG)
1 |
58516R - TUYAU A FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/6/7/img/174667.jpg)
2 |
1C005539 - BRAKE HOSE RIGHT (LINK -BRAKE CALIPER) More informationQuantity required : 1 |
|||||||||
|
2 |
1C005539 - BRAKE HOSE RIGHT (LINK -BRAKE CALIPER) More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/1/1/img/95511.jpg)
3 |
FRONT BRAKE CALIPER- RIGHT HENG-TONG "PIAGGIO GENUINE PART" 125-250-300-400-500-MP3/GILERA 500 FUOCO -CM065707 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/2/2/img/68422.jpg)
4 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2006> FRONT, 50-125 VESPA LX FRONT, 50-125 VESPA S FRONT, 50-125 LIBERTY FRONT, 50 NRG/GILERA 50 RUNNER REAR, 500 FUOCO REAR (PAIR) (GRIMECA) -666574 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
5 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/6/5/img/174665.jpg)
7 |
1C005540 - BRAKE HOSE LEFT (LINK-BRAKE CALIPER) More informationQuantity required : 1 |
|||||||||
|
7 |
1C005540 - BRAKE HOSE LEFT (LINK-BRAKE CALIPER) More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/1/2/img/95512.jpg)
8 |
FRONT BRAKE CALIPER- LEFT HENG-TONG "PIAGGIO GENUINE PART" 125-250-300-400-500-MP3/GILERA 500 FUOCO -CM065708 More informationQuantity required : 1 |
|||||||||
|
9 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2006> FRONT, 50-125 VESPA LX FRONT, 50-125 VESPA S FRONT, 50-125 LIBERTY FRONT, 50 NRG/GILERA 50 RUNNER REAR, 500 FUOCO REAR (PAIR) (GRIMECA) -666574 More informationQuantity required : 1 |
|||||||||
|
10 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150 More informationQuantity required : 2 |
|||||||||
|
11 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
12 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
13 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
14 |
845978 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
15 |
006966 - RONDELLE S00696600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
16 |
319538 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
17 |
013950 - RONDELLE S01395000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
18 |
241936 - ECROU More informationQuantity required : 2 |
|||||||||
|
19 |
601970 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
20 |
B016777 - VIS More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
20 |
969296 - BOULON More informationQuantity required : 4 |
|||||||||
|
20 |
B016777 - VIS More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
21 |
257134 - COLLIER More informationQuantity required : 1 |
|||||||||
|
22 |
601737 - TUYAU A FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/7/5/img/86875.jpg)
23 |
SUPPORT-FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 300-350-400-500 MP3 -648845 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/5/0/img/86950.jpg)
24 |
REAR BRAKE HOSE "PIAGGIO GENUINE PART" 400-500 MP3/GILERA 500 FUOCO -649377 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/1/img/72981.jpg)
25 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 300-400 MP3, 400 BEVERLY, X8, X-EVO/GILERA 500 NEXUS -CM068304 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
26 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/3/8/img/68038.jpg)
27 |
647799 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
28 |
016626 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
29 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 2 |
|||||||||
|
30 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 4 |
|||||||||
|
31 |
179013 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
32 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
33 |
016604 - RONDELLE S01660400 More informationQuantity required : 2 |
|||||||||
|
34 |
136916 - PLAQUE More informationQuantity required : 2 |
|||||||||
|
35 |
257134 - COLLIER More informationQuantity required : 4 |
|||||||||
|
36 |
58517R - TUYAU A FREIN More informationQuantity required : 1 |
|||||||||
|
37 |
601743 - CANALISATION FREIN DR. More informationQuantity required : 1 |
|||||||||
|
38 |
601741 - TUYAU A FREIN GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/4/4/img/83044.jpg)
39 |
BRAKE PIPE-FROM MAIN MASTER CYLINDER TO PRESSURE UNIT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601781 More informationQuantity required : 1 |
|||||||||
|
40 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 5 |
|||||||||
|
41 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 12 |
|||||||||
|
42 |
B016777 - VIS More informationQuantity required : 2 |
|||||||||
|
42 |
B016777 - VIS More informationQuantity required : 2 |
|||||||||
|
42 |
969296 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/7/7/img/111477.jpg)
43 |
D9004461193 - COLLIER More informationQuantity required : 2 |
|||||||||
|
44 |
013950 - RONDELLE S01395000 More informationQuantity required : 2 |
|||||||||
|
45 |
241936 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/2/6/img/85926.jpg)
46 |
OIL PRESSURE SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640295 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/6/9/img/77469.jpg)
47 |
MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/3/img/79623.jpg)
48 |
498431 - BOUCHON RESERV LOOCK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
49 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
50 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.jpg)
51 |
COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
51 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 1 |
|||||||||
|
52 |
649563 - TUBE JONCTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
53 |
CM001901 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
53 |
CM002907 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/7/1/img/86871.jpg)
54 |
BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -648798 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/1/7/img/73817.jpg)
55 |
015650 - VIS S01565000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/7/7/img/73877.jpg)
56 |
020004 - ECROU S02000400 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
57 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
|||||||||
|
57 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/0/4/img/86904.jpg)
58 |
MECANICAL BRAKE PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649090 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
59 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 2 |
|||||||||
|
60 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/2/6/img/89926.jpg)
61 |
ANTI-TILTING DISC "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 - 665588 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
62 |
599208 - VIS More informationQuantity required : 4 |
|||||||||
|
63 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/5/6/img/86956.jpg)
64 |
PARKING BRAKE LEVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -6494205 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
65 |
959559 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
66 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/6/img/67286.jpg)
67 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
68 |
709099 - VIS More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
69 |
006976 - RONDELLE S00697600 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/1/7/img/73017.jpg)
70 |
PARKING BRAKE CALIPER "PIAGGIO GENUINE PART" 125-300-400-500 MP3/GILERA 500 FUOCO -CM084601 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/9/8/img/68098.jpg)
71 |
REAR BRAKE PADS -PARKING BRAKE "PIAGGIO GENUINE PART" APRILIA 850 SRV AR/GILERA 800 GP MP3 400-500, YOURBAN 125-300 (PAIR) -649830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/5/2/img/68052.jpg)
72 |
PARKING BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -648476 More informationQuantity required : 1 |
|||||||||
|
73 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
74 |
031087 - ECROU S03108700 More informationQuantity required : 1 |
|||||||||
|
74 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
|
74 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/6/4/img/86964.jpg)
75 |
649502 - COLLIER More informationQuantity required : 1 |
|||||||||
|
76 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
|||||||||
|
77 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
|
77 |
031087 - ECROU S03108700 More informationQuantity required : 1 |
|||||||||
|
77 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
|
78 |
649502 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
79 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165 More informationQuantity required : 2 |
|||||||||
|
80 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/5/0/img/86750.jpg)
81 |
REAR BRAKE CALIPER BRACKET "PIAGGIO GENUINE PART" 350-400-500 MP3, 400 X-EVO, X8 -647825- More informationQuantity required : 1 |
|||||||||
|
82 |
649378 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
83 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 5 |
|||||||||
|
84 |
B016777 - VIS More informationQuantity required : 2 |
|||||||||
|
84 |
B016777 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
85 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/4/img/65614.jpg)
86 |
030076 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/0/img/82450.jpg)
87 |
598833 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
89 |
648932 - CANALISATEUR More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009.png)
-
01.02 Moteur complet
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.02.PNG)
-
01.05 Carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.05.PNG)
-
01.06 Vilebrequin
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.06.PNG)
-
01.07 Groupe cylindre-piston-axe
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.07.PNG)
-
01.10 Ensemble culasse - Soupape
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.10.PNG)
-
01.11 Groupe support balanciers
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.11.PNG)
-
01.12 Couvercle culasse
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.12.PNG)
-
01.13 Poulie motrice
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.13.PNG)
-
01.14 Poulie entrainee
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.14.PNG)
-
01.15 Couvercle carter - Refoidissement carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.15.PNG)
-
01.18 Pompe à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.18.PNG)
-
01.19 Pompe à eau
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.19.PNG)
-
01.20 Démarrage - Démarrage électrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.20.PNG)
-
01.21 Volant magnetique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.21.PNG)
-
01.23 Couvercle volant magnetique - Filtre à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.23.PNG)
-
01.25 Ensemble réducteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.25.PNG)
-
01.36 Corps papillon - Injecteur - Raccord d'admission
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.36.PNG)
-
01.42 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.42.PNG)
-
01.45 Filtre à air
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.45.PNG)
-
02.01 Châssis/coque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.01.PNG)
-
02.25 Béquille/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.25.PNG)
-
02.26 Tablier avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.26.PNG)
-
02.27 Pare-brise - Glaces
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.27.PNG)
-
02.30 Coffre avant - Contre-tablier
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.30.PNG)
-
02.31 Protection centrale - Repose-pieds
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.31.PNG)
-
02.32 Couvertures laterales - Spoiler
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.32.PNG)
-
02.33 Logement roue - Garde boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.33.PNG)
-
02.34 Logement casque - Dessous de selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.34.PNG)
-
02.37 Couvercle arrière - Pare-boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.37.PNG)
-
02.38 Monogrammes - Decorations
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.38.PNG)
-
02.39 Selle/sieges
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.39.PNG)
-
02.45 Rétroviseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.45.PNG)
-
02.46 Serrures
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.46.PNG)
-
02.47 Réservoir carburant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.47.PNG)
-
02.53 Instalation de l'alimentation
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.53.PNG)
-
02.55 Instalation de refoidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_02.55.PNG)
-
03.01 Couvertures guidon
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_03.01.PNG)
-
03.02 Groupe instruments - Cruscotto
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_03.02.PNG)
-
03.06 Guidon - Maître cylindre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_03.06.PNG)
-
04.01 Bras oscillant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_04.01.PNG)
-
04.02 Fourche/tube direction - Ensemble butée dir.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_04.02.PNG)
-
04.07 Componenti della forcella (Mingxing)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_04.07.PNG)
-
04.10 Suspension arrière - Amortisseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_04.10.PNG)
-
04.11 Roue avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_04.11.PNG)
-
04.12 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_04.12.PNG)
-
05.01 Tuyaus du freins - Etriers de frein
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_05.01.PNG)
-
05.03 Transmissions
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_05.03.PNG)
-
06.01 Inverseurs - Commutateurs - Boutons - Interrupteurs
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_06.01.PNG)
-
06.03 Eclairages avant - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_06.03.PNG)
-
06.04 Eclairages arrière - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_06.04.PNG)
-
06.05 Relais - Batterie - Avertisseur sonore
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_06.05.PNG)
-
06.06 Régulateurs de tension - Centrales electroniques - Bobine H.T.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_06.06.PNG)
-
06.08 Faisceau de câbles principal
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_06.08.PNG)
