Vehicle Exploded View - PIAGGIO MP3 400 ie MIC 2008-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

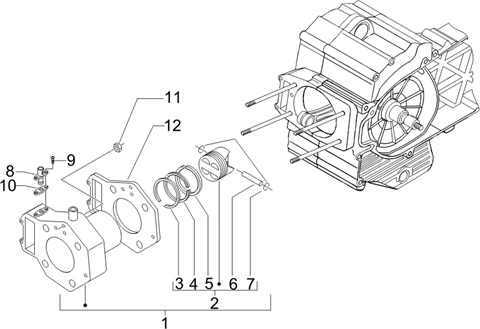

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/25/MP3_400_ie_MIC_2008-2009_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/7/img/72787.jpg)
1 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 400 MP3 2007, BEVERLY 2006>, X EVO 2007>, X8 2003>/APRILIA 400 ATLANTIC 2005>, 400 SCARABEO 2005> -B018504 More informationQuantity required : 1 |
||||||
2 |
B0185030001 - GROUP DE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/4/img/72784.jpg)
2 |
PISTON (CAT 2) "PIAGGIO GENUINE PART" 400 MP3 2007>, BEVERLY 2006>, X8 2004>2006, X-EVO 2007>/APRILIA 400 ATLANTIC 2005>, SCARABEO 2006> -B0185030002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/5/img/72785.jpg)
2 |
PISTON (CAT 3) "PIAGGIO GENUINE PART" 400 MP3 2007>, BEVERLY 2006>, X8 2004>2006, X-EVO 2007>/APRILIA 400 ATLANTIC 2005>, SCARABEO 2006> -B0185030003- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/6/img/72786.jpg)
2 |
PISTON (4) "PIAGGIO GENUINE PART" COMMON FOR 400CC RANGE -B0185030004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/3/img/69343.jpg)
3 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 400 MP3, X8, X-EVO/APRILIA 400 ATLANTIC, SCARABEO -845313 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/4/img/69344.jpg)
4 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 400 MP3, X8, X-EVO/APRILIA 400 ATLANTIC, SCARABEO -845314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/2/img/69342.jpg)
5 |
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" 400 MP3, X8, X-EVO/APRILIA 400 ATLANTIC, SCARABEO -845312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.jpg)
6 |
827820 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
7 |
828116 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
8 |
82650R - TENDEUR More informationQuantity required : 1 |
||||||
|
8 |
82650R - TENDEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
9 |
B016777 - VIS More informationQuantity required : 2 |
||||||
|
9 |
B016777 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
10 |
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
11 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
12 |
CYLINDER BASE GASKET- 0,8MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -830275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/4/img/68904.jpg)
12 |
CYLINDER BASE GASKET- (0,6MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
12 |
CYLINDER BASE GASKET- 0,4MM "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830277 More informationQuantity required : 1 |
