Vehicle Exploded View - DERBI MINIMOTO 50 MINIMOTO Dirt Boy - Dirt Kid
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

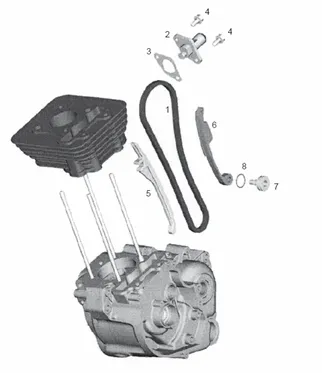

Moteur : 8 TENDEUR DE CHAÎNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_8.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/7/img/70967.jpg)
1 |
CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-96933R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
2 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
2 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
3 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
4 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/4/img/68764.jpg)
5 |
GLISSIERE TENDEUR DE CHAIN OEM PIAGGIO 50-100 COMMON A LA RANGE-828561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/5/img/70995.jpg)
6 |
PATIN DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-969877 More informationQuantity required : 1 |
||||||
7 |
834782 - K-TORNILLO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/0/img/66540.jpg)
8 |
O-RING EPURATEUR OIL OEM APRILIA 660 RS, TUAREG, TUONO-750 SHVER-478012 More informationQuantity required : 1 |
