Vehicle Exploded View - DERBI MINIMOTO 50 MINIMOTO Dirt Boy - Dirt Kid
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

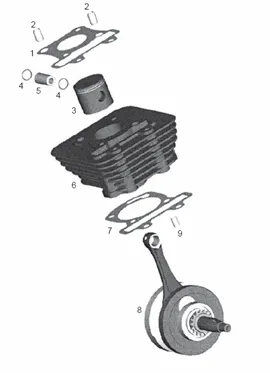

Moteur : 7 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_7.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/3/img/70973.jpg)
1 |
CYLINDER HEAD GASKET OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA-S 4T, SPRINT 4T-969393 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
2 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 1 |
||||||
3 |
96923R - K-PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/4/img/70934.jpg)
4 |
CLIPS/CIRCLIPS DE PISTON DIAM 13 (FORME EN C) OEM PIAGGIO COMMON A LA RANGE-969213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/5/img/70935.jpg)
5 |
SHAFT OF PISTON OEM PIAGGIO 50 4T ZIP, SPRINT, PRIMAVERA-969214 More informationQuantity required : 1 |
||||||
|
6 |
834761 - K-GRUPO CILINDRO More informationQuantity required : 1 |
||||||
|
7 |
840284-K-JUNTA More informationQuantity required : 1 |
||||||
|
7 |
840285 - K-JUNTA More informationQuantity required : 1 |
||||||
|
8 |
840132 - K-CIG_EÐAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
9 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 1 |
